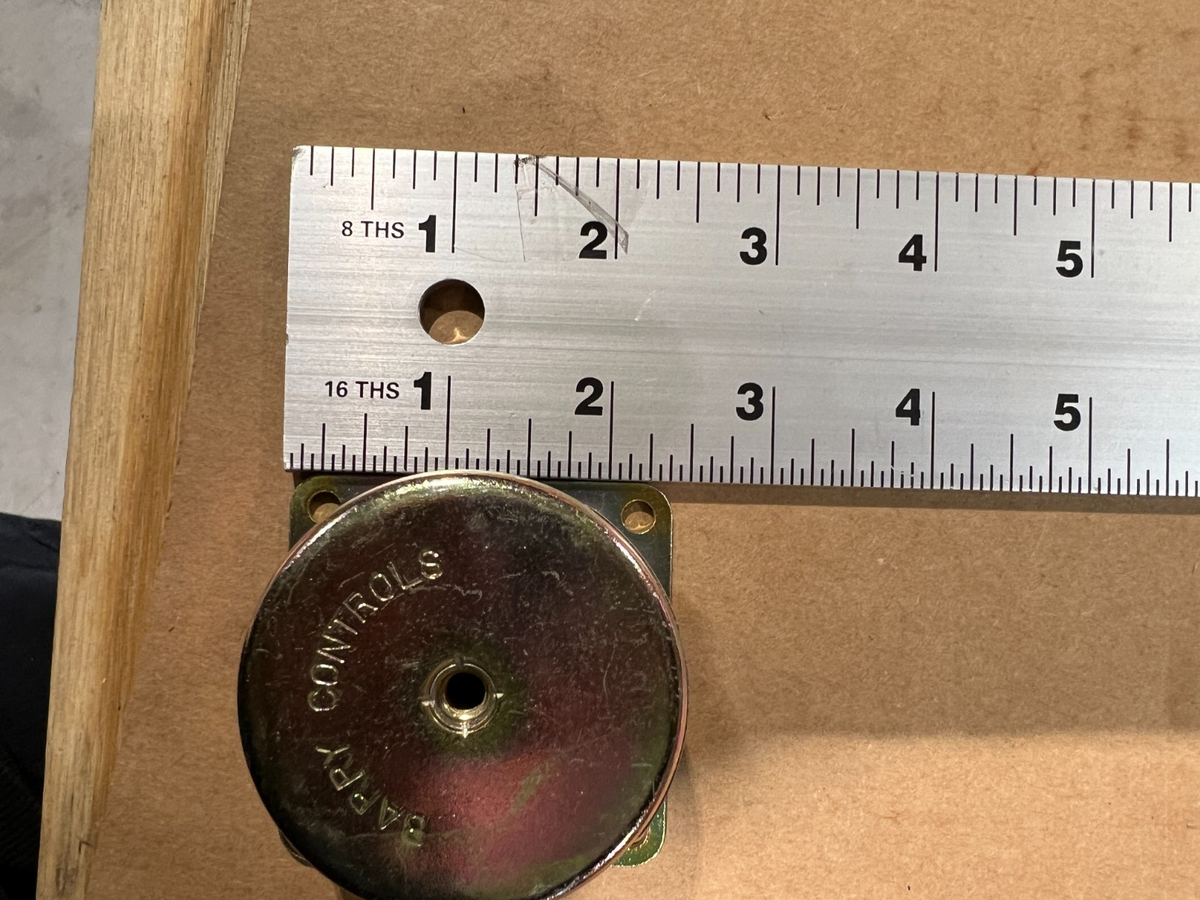

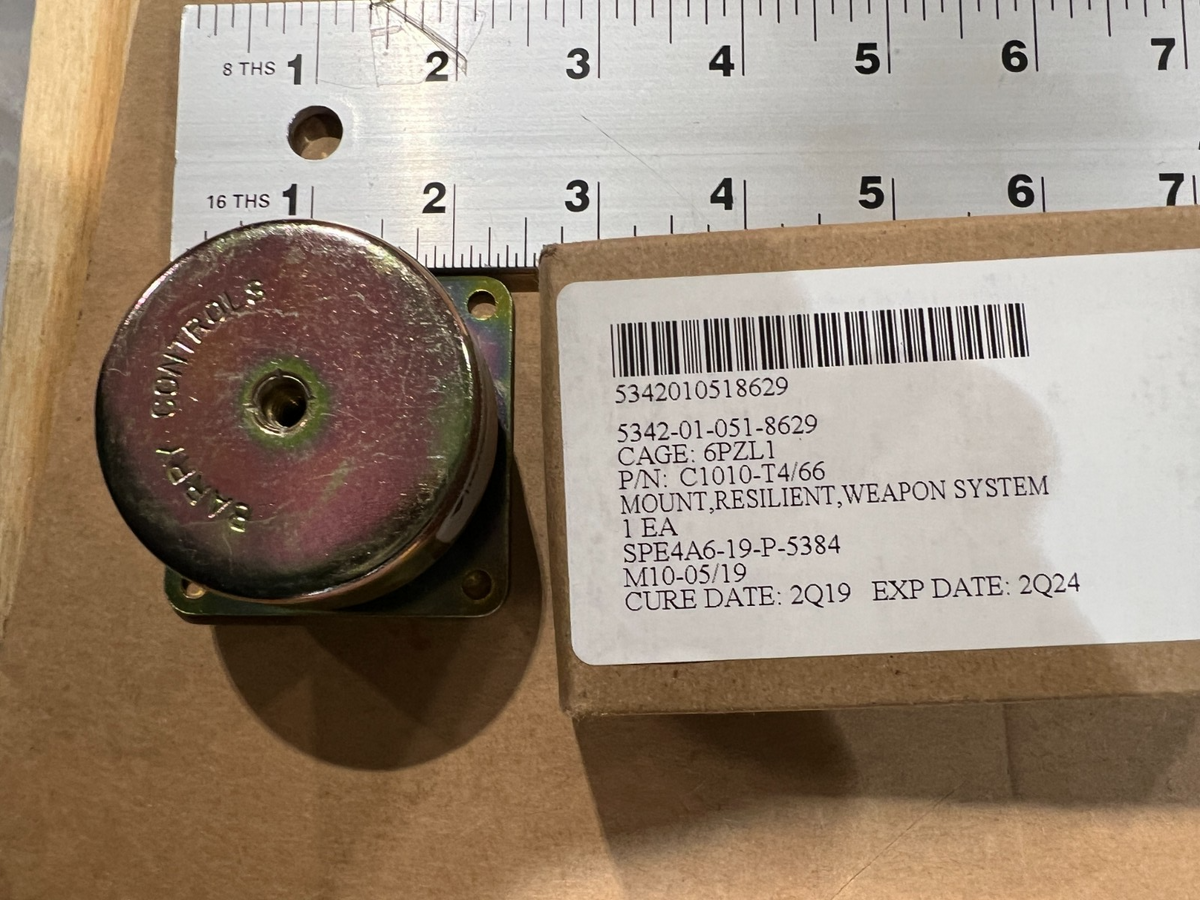

MINUTEMAN III LGM-30 C 1010-T4/66 WEAPON SYSTEM RESILIENT MOUNT 5342-01-051-8629

Hutchinson Aerospace & Industry NC1010-4/02 Resilient Weapon Mount (5342-01-051-8629)

Steel resilient weapon mount with zinc surface treatment, for the MINUTEMAN III LGM-30 weapon system.

Part Information

• Manufacturer: Hutchinson Aerospace & Industry
• Part Number: NC1010-4/02
• NSN: 5342-01-051-8629
• End Item: MINUTEMAN III LGM-30

Specifications

• Material: Steel (overall)
• Surface Treatment: Zinc (overall)
• Inside Diameter: 0.250 in nominal
• Flange Thickness: 0.063 in nominal
• Flange Length: 2.375 in nominal
• Flange Width: 2.375 in nominal
• Height: 1.125 in nominal
• Distance Between Mounting Hole Centers: 1.938 in nominal
• Flange Mounting Hole Diameter: 0.196 in nominal
• Load Rating: 20.0 lb maximum
• Load/Frequency Range: 8 to 14 lb load for 23 to 28 Hz
• Special Features: Packaging per MIL-P-23199; material per Ships Parts Control Center special quality control provisions
