MKR18 LVSR 22.5 TON PARKER-HANNIFIN 3665497 METALLIC HOSE ASSY 4720-01-562-0576

OSHKOSH DEFENSE LLC 3665497 Hose Assembly Number 12 CR 73.0 2213 (4720-01-562-0576)

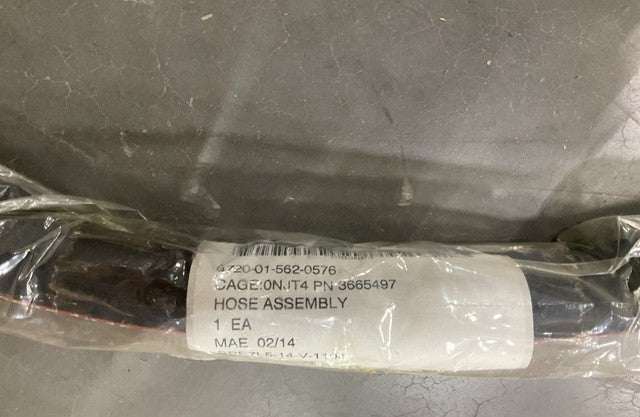

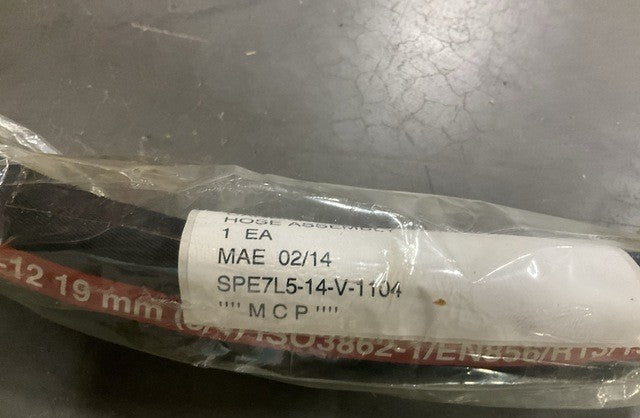

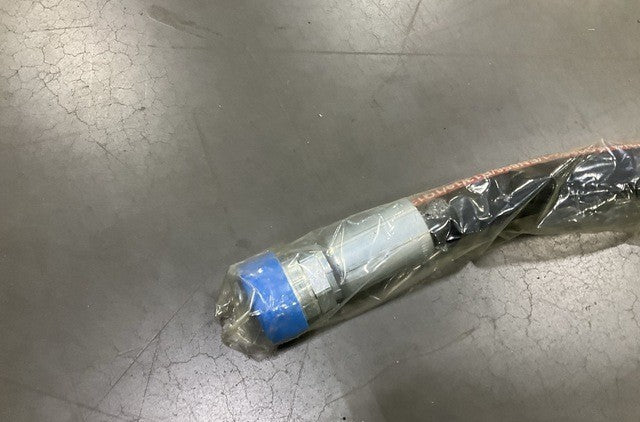

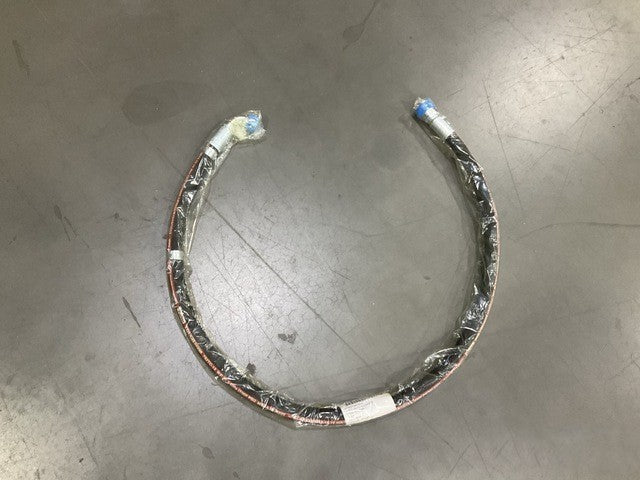

Metallic hose assembly with straight swivel and 90-degree elbow swivel ORFS ends, for the MKR18 LVSR 22.5 Ton truck.

Part Information

• Manufacturer: Oshkosh Defense LLC
• Part Number: 3665497
• NSN: 4720-01-562-0576
• End Item: MKR18 LVSR 22.5 TON

Specifications

• Operating Pressure: 5000 PSI maximum (single response)
• Hose End 1: Straight swivel, Number 12, Thread 1.4375-12 ORFS, conforms to SAE J516 5301XX
• Hose End 2: 90° elbow swivel, Number 12, Thread 1.1875-12 ORFS, conforms to SAE J516 5314XX
• Hose Size: Number 12 (0.750 ID)
• Minimum Burst Pressure: 20,000 PSI
• Minimum End Radius: 9.50 inch
• Overall Length: 73.00 inch
