MRAP-M-ATV MAK 4003715 10MM X37MM SHOULDER SCREW 0312106788-00 5305-01-609-3973
MRAP-M-ATV MAK 4003715 10MM X37MM SHOULDER SCREW 0312106788-00 5305-01-609-3973
Regular price
$29.23 USD
Regular price
Sale price
$29.23 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5305-01-609-3973 Specs and cross-references for NSN 5305-01-609-3973 (opens in a new tab) ↗

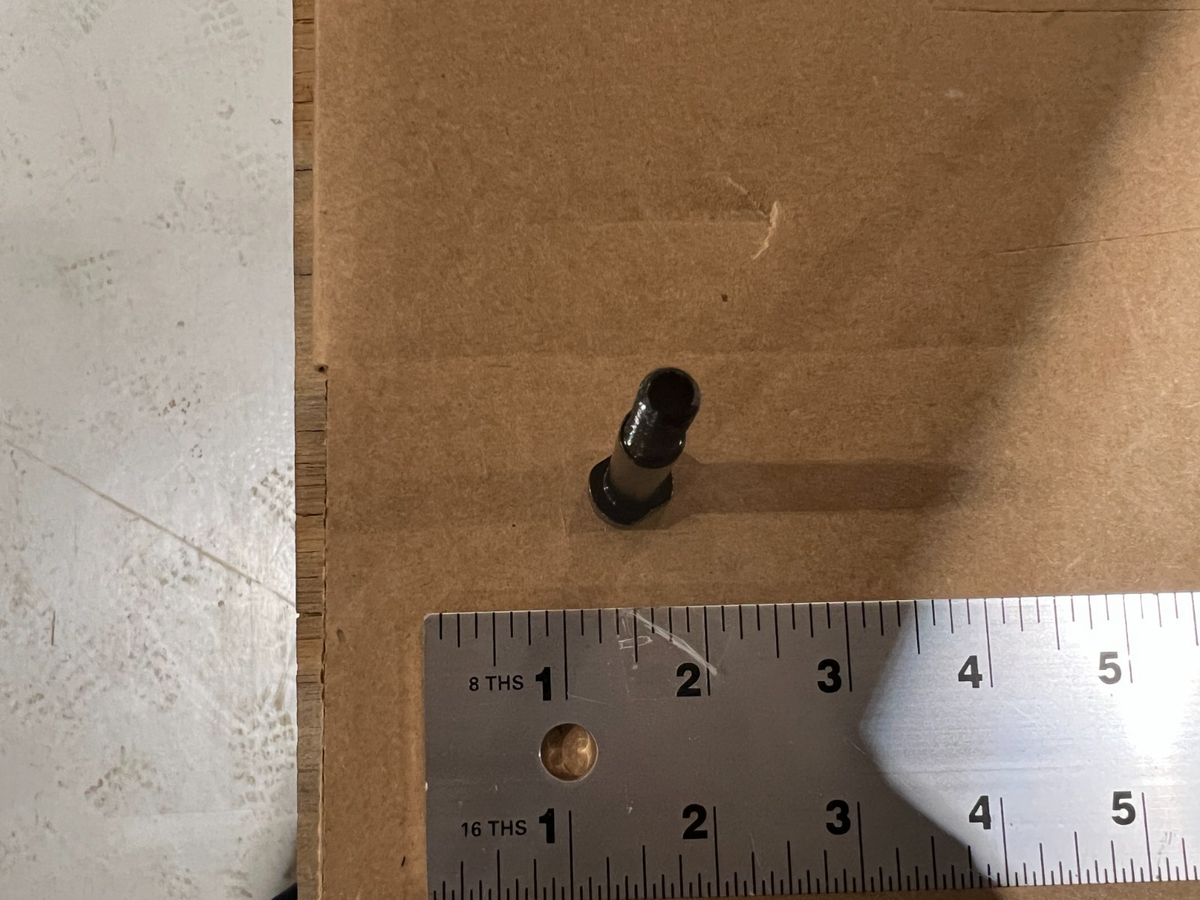

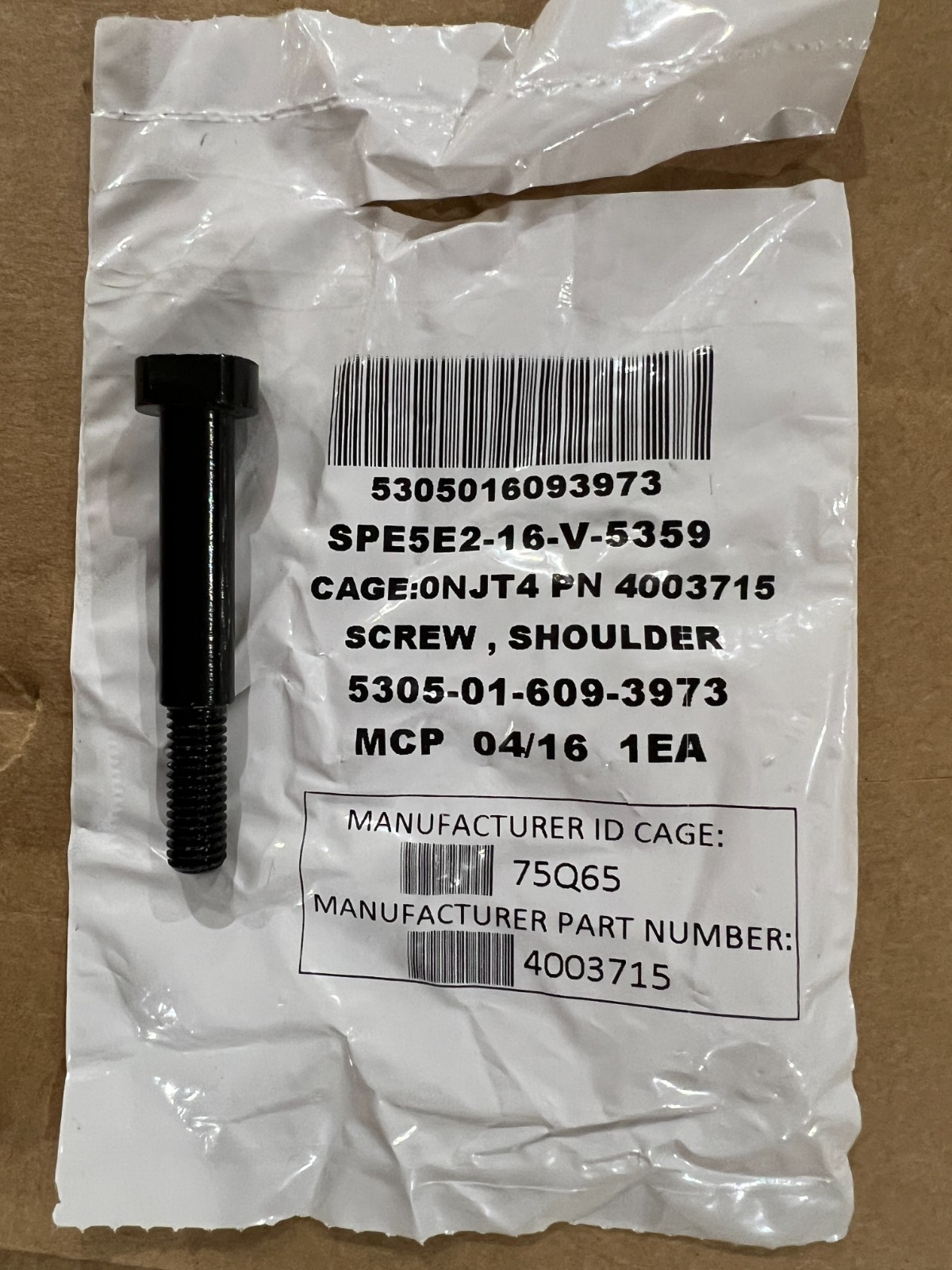

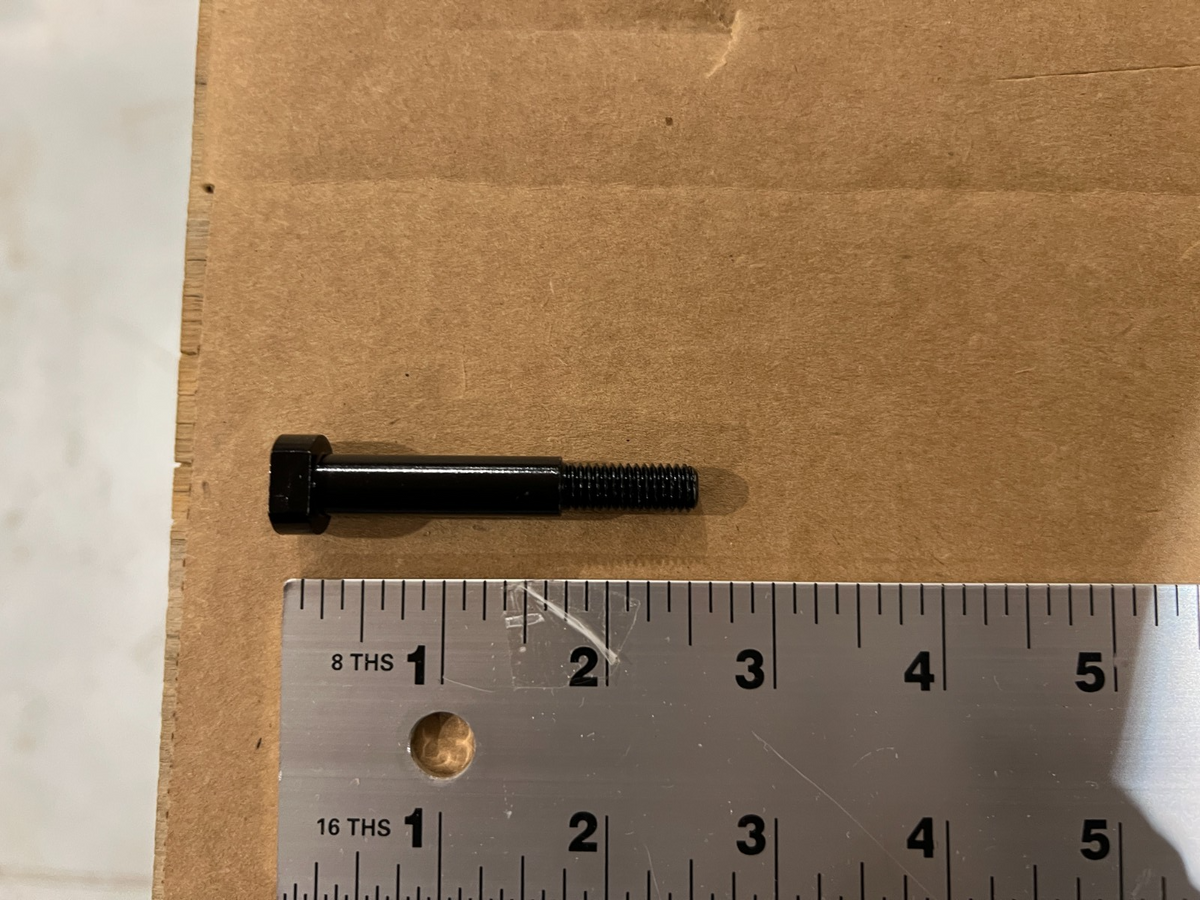

OSHKOSH DEFENSE LLC 4003715 10mm X37mm NS SPL Shoulder Screw (5305-01-609-3973)
Metric shoulder screw, 10mm shoulder diameter, 37mm shoulder length, for the MRAP-M-ATV.
Part Information
- Manufacturer: Oshkosh Defense LLC
- Part Number: 4003715
- NSN: 5305-01-609-3973
- End Item: MRAP-M-ATV
Specifications
- Thread Direction: Right-hand
- Thread Series Designator: M
- Thread Pitch: 1.250 mm
- Thread Length: 20.0 mm nominal
- Fastener Length: 64.0 mm nominal
- Head Diameter: 16.0 mm nominal
- Head Height: 6.0 mm nominal
- Width Between Flats: 2.7 mm
- Shoulder Diameter (first shoulder): 10.0 mm nominal
- Shoulder Length (first shoulder): 37.0 mm nominal
- Shoulder Shape: All shoulders round
