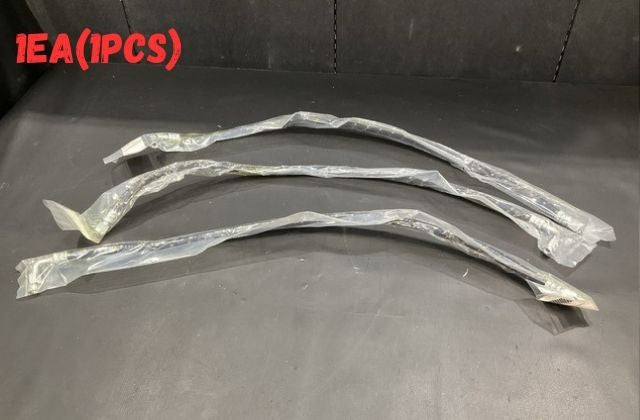

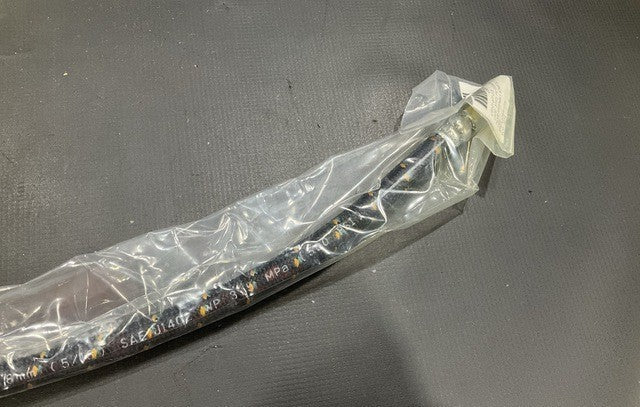

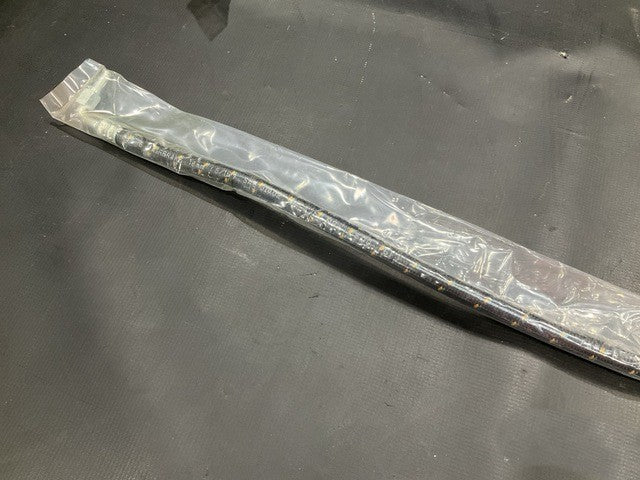

MRAP-M-ATV PARKER-HANNIFIN P2930641060606-37 ROUND HOSE ASSY 4720-01-577-0136

Oshkosh Defense 3833968 Hose Assembly Number 6 CR 37.0 2266 (NSN 4720-01-577-0136)

Nonmetallic hose assembly, straight first end, elbow second end with 90-degree flow angle, steel socket fittings, for the MRAP-M-ATV.

Part Information

• Manufacturer: Oshkosh Defense LLC
• Part Number: 3833968

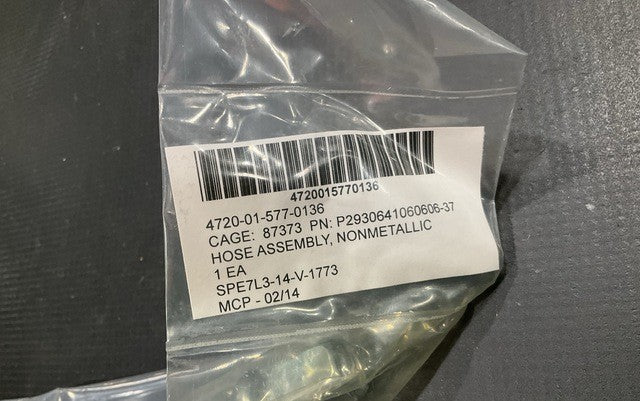

• NSN: 4720-01-577-0136
• End Item: MRAP-M-ATV

Specifications

• Inside Diameter: 0.312 in nominal
• Outside Diameter: 0.620 in nominal
• Overall Length: 37.000 in nominal
• Minimum Inside Bending Radius: 1.000 in
• Thread Direction: All ends, right-hand
• Nominal Thread Size: 0.563 in, UNF series
• Seat Angle: 37.0 degrees, all ends
• End Connection: First end straight; Second end elbow (90-degree flow angle)
• End Fitting: Socket, steel, all ends
• Connection Type: Threaded internal hose, all ends
• Burst Test Pressure: 2000 PSI
• Operating Pressure: 500 PSI maximum
• Temperature Rating: -58.0°F to 302.0°F
• Inside Surface: Smooth
• Structure: Molded synthetic rubber inner layer, braided fiber second layer, braided polyamide cord outer layer
• Media: Hydraulic fluid, diester-base lubricating oil, diesel fuel, ethylene glycol
