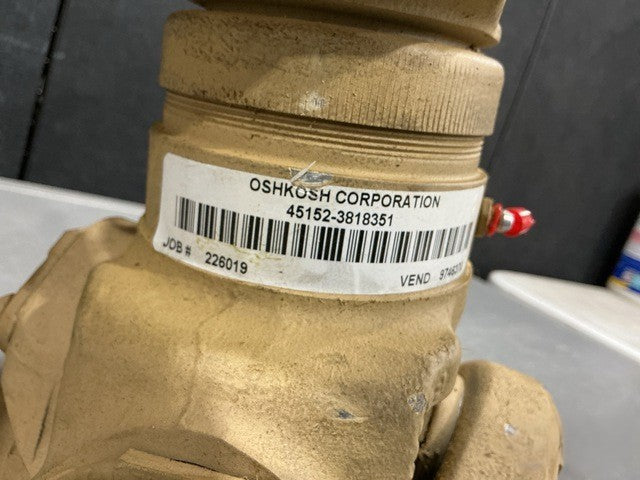

MRAP M1245 MATV 45152-381835 VEHICULAR PROPELLER SHAFT 3818351 2520-01-576-4516
MRAP M1245 MATV 45152-381835 VEHICULAR PROPELLER SHAFT 3818351 2520-01-576-4516
Regular price
$1,468.61 USD
Regular price
Sale price
$1,468.61 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 2520-01-576-4516 Specs and cross-references for NSN 2520-01-576-4516 (opens in a new tab) ↗
2520PL1817602 Flange Propeller Shaft (2520-01-576-4516)

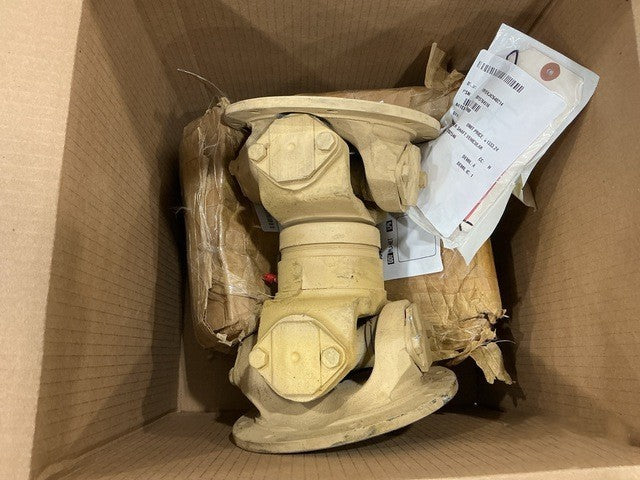

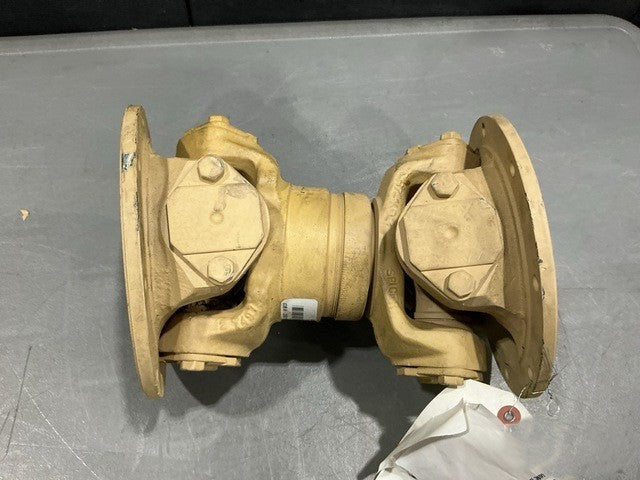

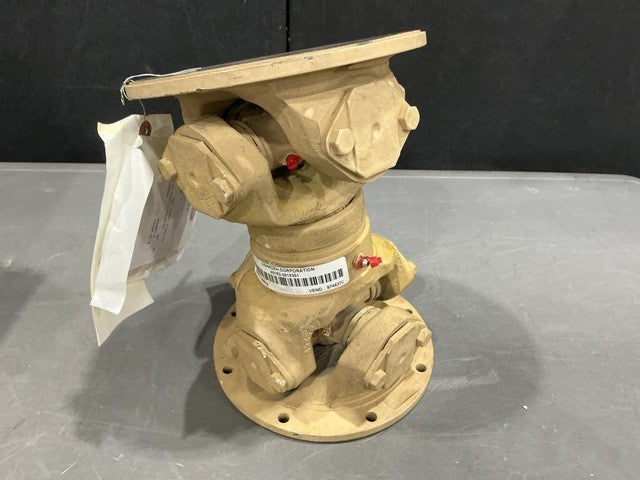

Vehicular propeller shaft, open yoke both ends, nominal overall length 10.630 inches, for the M1245 MATV.
Part Information
- Part Number: 2520PL1817602
- NSN: 2520-01-576-4516
- End Item: M1245 MATV
Specifications
- End Component Type and Location: Yoke, Both Ends
- Yoke Type: Open
- Nominal Overall Length: 10.630 inches

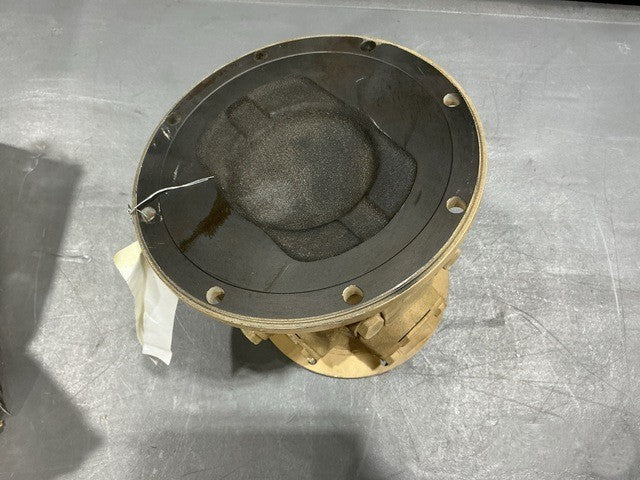

- Special Features: Nominal diameter of companion flanges at both ends is 8.000 inches; each flange has 8 holes 0.3906 inches in diameter equally spaced 7.250 inches in diameter from centerpoint of flange face
