MRAP-matv Truck Oshkosh 3857897 Special Purpose Cable Assembly | NSN 6150-01-583-8640
MRAP-matv Truck Oshkosh 3857897 Special Purpose Cable Assembly | NSN 6150-01-583-8640
Regular price
$88.43 USD
Regular price
Sale price
$88.43 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 6150-01-583-8640 Specs and cross-references for NSN 6150-01-583-8640 (opens in a new tab) ↗

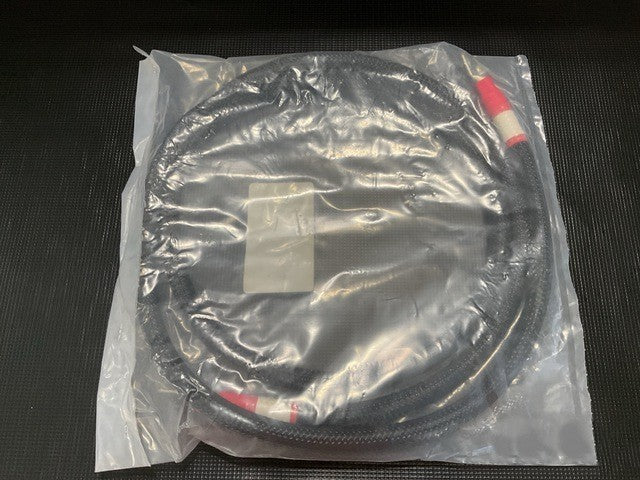

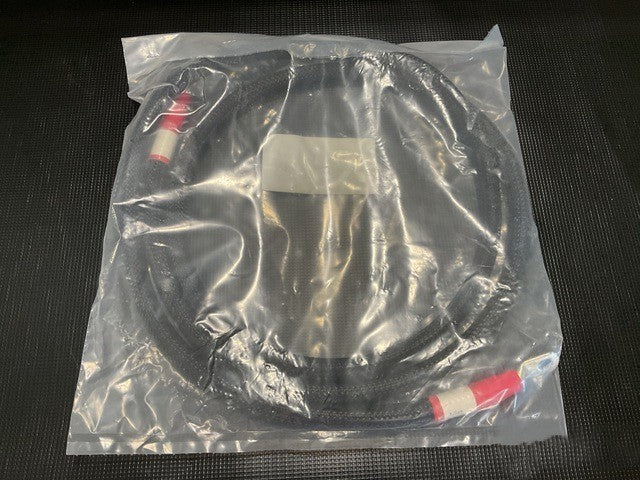

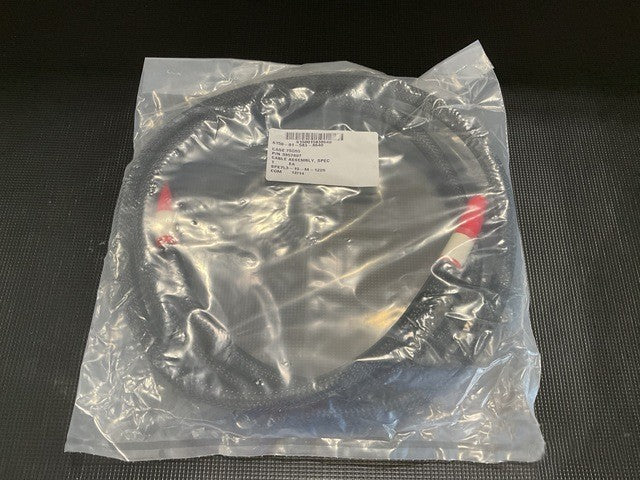

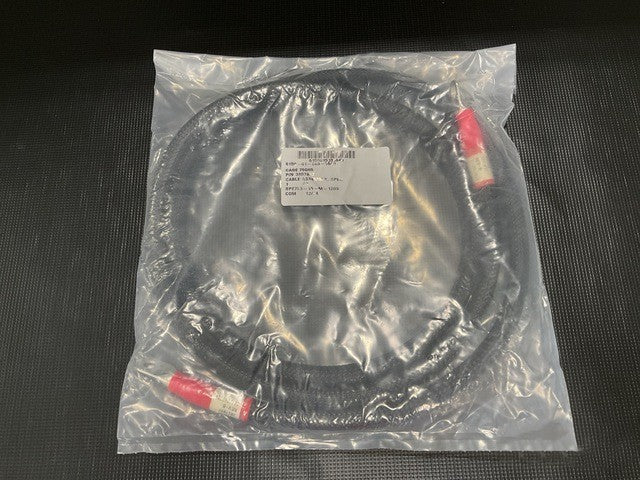

OSHKOSH 3857897 Special Purpose Cable Assembly (NSN 6150-01-583-8640)
00GA cable assembly, 94.0 inch center-to-center length, 2/0 AWG fully annealed stranded bare soft copper conductor with EPDM insulation, for the MRAP-MATV Truck.

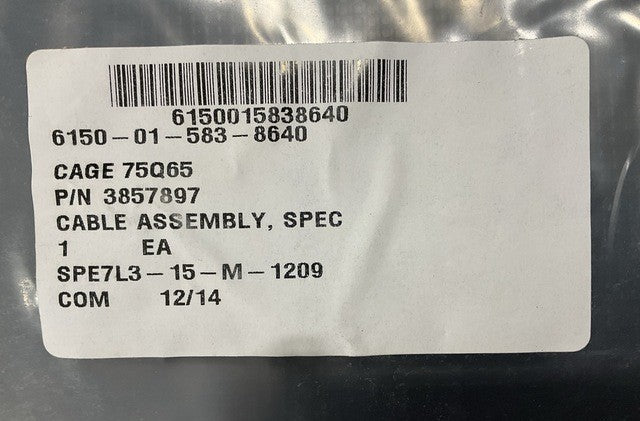

Part Information
- Manufacturer: Oshkosh Corp
- Part Number: 3857897
- NSN: 6150-01-583-8640
- End Item: MRAP-MATV Truck
Specifications

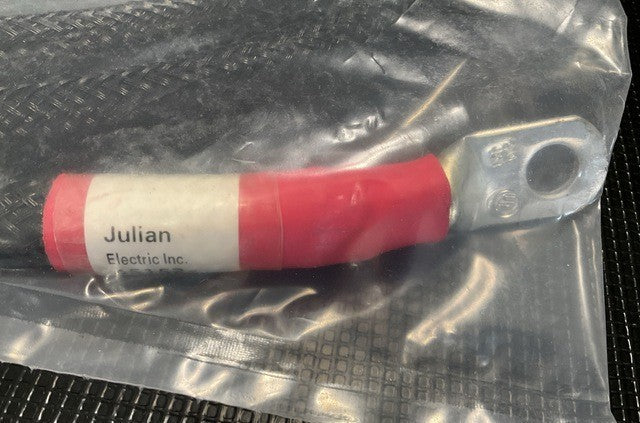

- Center to Center Distance Between Terminal Holes: 94.000 in nominal
- Conductor: Fully annealed stranded bare soft copper IAW ASTM B-3
- AWG Size: 2/0
- Stranding: 1054/30
- Insulation: Ethylene-Propylene-Diene Monomer (EPDM)
- Insulation Thickness: .080 in
- Nominal Cable O.D.: .570 in
- Color: Black
- Temperature Rating: -50 to 105°C
- Voltage Rating: 600V
