MRAP RCV JERRV 10003438 TRANSMISSION TUNNEL UPPER ACCESS PLATE 5340-01-578-3616
MRAP RCV JERRV 10003438 TRANSMISSION TUNNEL UPPER ACCESS PLATE 5340-01-578-3616
Regular price
$202.92 USD
Regular price
Sale price
$202.92 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5340-01-578-3616 Specs and cross-references for NSN 5340-01-578-3616 (opens in a new tab) ↗
General Dynamics Land Systems 10003438 Transmission Tunnel Upper Access Plate (5340-01-578-3616)

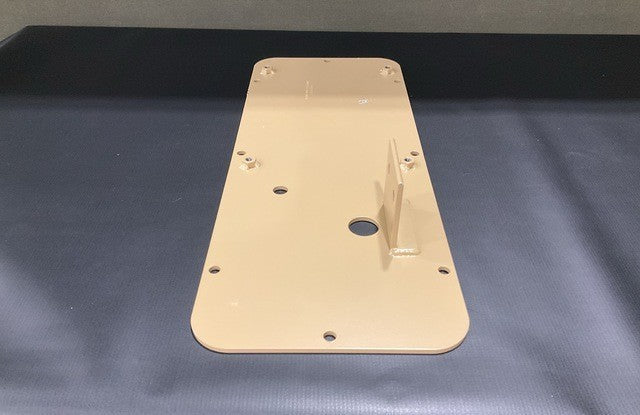

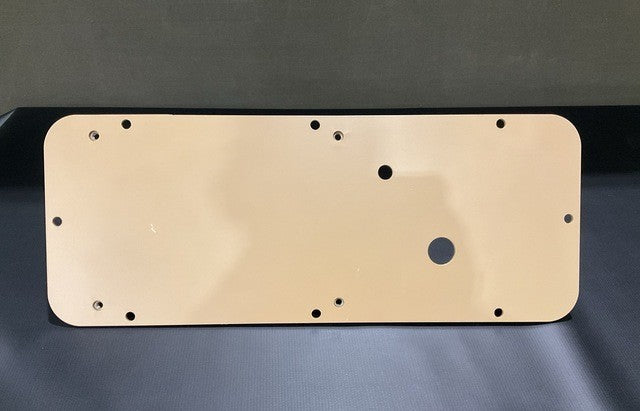

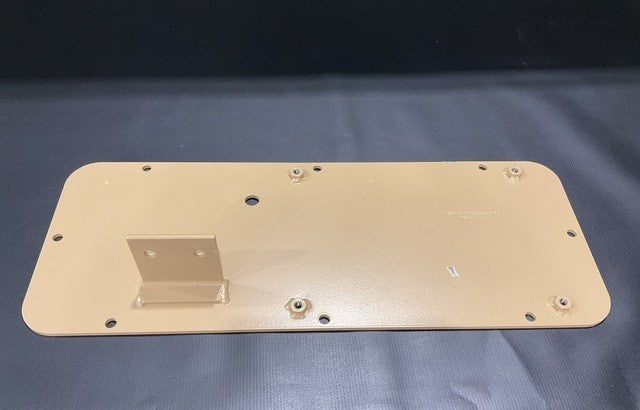

Steel transmission tunnel upper access plate for the MRAP RCV JERRV, rectangular with rounded corners, featuring 4 welded hexagon prevailing torque lock nuts.
Part Information
- Manufacturer: General Dynamics Land Systems
- Part Number: 10003438
- NSN: 5340-01-578-3616
- End Item: MRAP RCV JERRV
Specifications
- Width: 225.0 mm nominal
- Length: 575.0 mm nominal
- Thickness: 4.6 mm nominal
- Corner Radius: 35.0 mm nominal
- Mounting Hole Quantity: 14, unthreaded
- Mounting Hole Diameter (1st): 9.5–10.5 mm
- Mounting Hole Diameter (2nd): 15.7–16.3 mm
- Mounting Hole Diameter (3rd): 29.5–30.5 mm
- Material: Steel
- Special Features: 4 hexagon prevailing torque lock nuts welded, metric 8.0 mm, 1.25 mm thread pitch, Class 9 steel
- Shape: Rectangular with rounded corners
