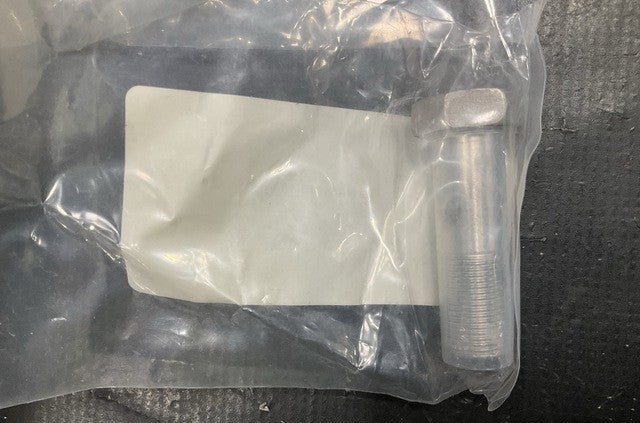

NAS1010-18A Hexagon Machine Bolt (NSN 5306-01-523-2075)
NAS1010-18A right-hand hexagon machine bolt, corrosion resisting steel, passivated finish.
Part Information
- Design Control Activity: National Aerospace Standards
- Part Number: NAS1010-18A
- NSN: 5306-01-523-2075
Specifications
- Thread Class: 3A
- Thread Direction: Right-hand
- Thread Series: Unified National Joint Fine (UNJF)
- Thread Quantity Per Inch: 18
- Nominal Thread Diameter: 0.625 in
- Thread Length: 1.042 in nominal
- Fastener Length: 2.167 in nominal
- Grip Length: 1.125 in nominal
- Head Height: 0.328–0.360 in
- Width Between Flats: 0.928–0.939 in
- Material: Steel, Corrosion Resisting
- Surface Treatment: Passivate
