New 7640180 Optical Instrument Telescope Straight Eyeshield | NSN 1240-00-764-0180 USA
New 7640180 Optical Instrument Telescope Straight Eyeshield | NSN 1240-00-764-0180 USA
Regular price
$89.30 USD
Regular price
Sale price
$89.30 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 1240-00-764-0180 Specs and cross-references for NSN 1240-00-764-0180 (opens in a new tab) ↗

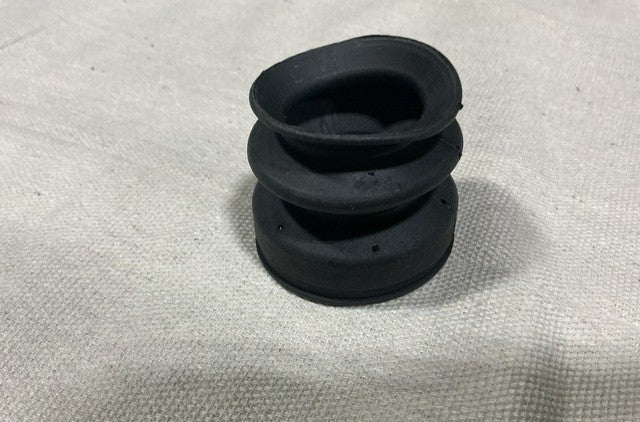

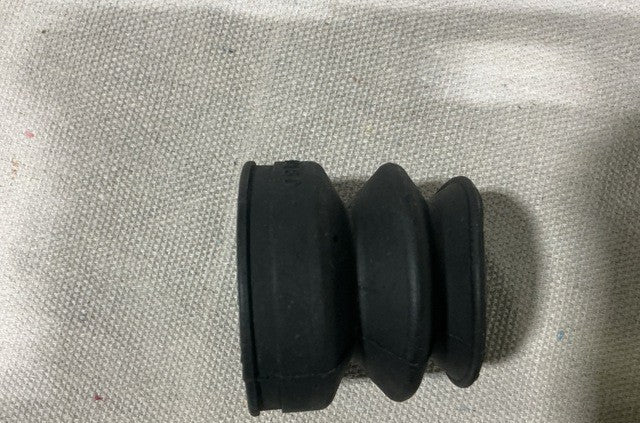

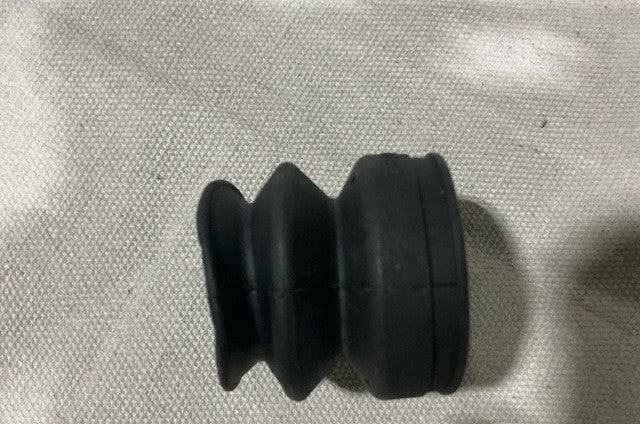

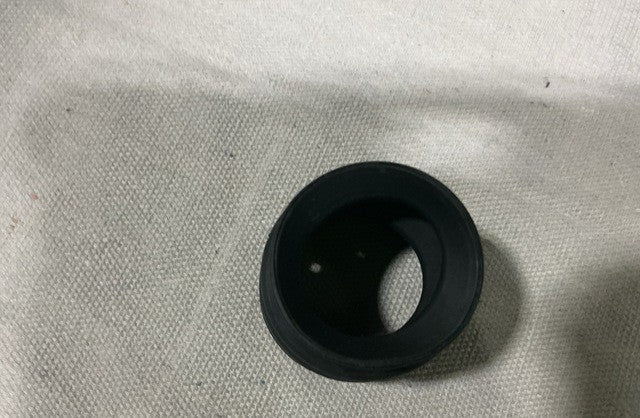

7640180 Optical Eyeshield (NSN 1240-00-764-0180)
Rubber optical instrument eyeshield, ring attachment, for the Howitzer, Light Towed, 105mm, M119A1.
Part Information
- Design Control Activity: Combat Capabilities Development
- Part Number: 7640180
- NSN: 1240-00-764-0180
- End Item: Howitzer, Light Towed, 105mm, M119A1
Specifications
- Overall Length: 1.578 in. min / 1.609 in. max
- Attachment Method: Ring
- Viewing End Inside Diameter: 1.093 in.
- Attachment End Inside Diameter: 1.562 in.
- Special Features: Six holes, 0.078 in. dia., on periphery, spaced 60° apart, approx. 0.562 in. from end of attachment end
- Material: Rubber Isobutylene-Isoprene Class IIR or Rubber Butadiene-Styrene Class SBR
- Material Spec: MIL-STD-417, Grade RS410ABC2F2
