New Apache AH-64 Jaco Engineering 311411164-7 Sleeve Bearing 3120-01-509-9129
New Apache AH-64 Jaco Engineering 311411164-7 Sleeve Bearing 3120-01-509-9129
Regular price
$445.66 USD
Regular price
Sale price
$445.66 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 3120-01-509-9129 Specs and cross-references for NSN 3120-01-509-9129 (opens in a new tab) ↗

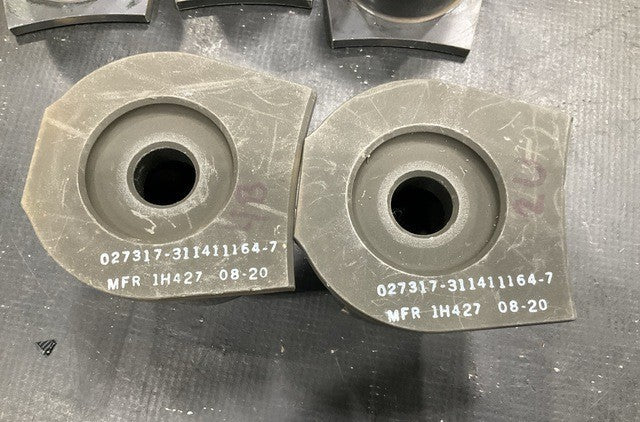

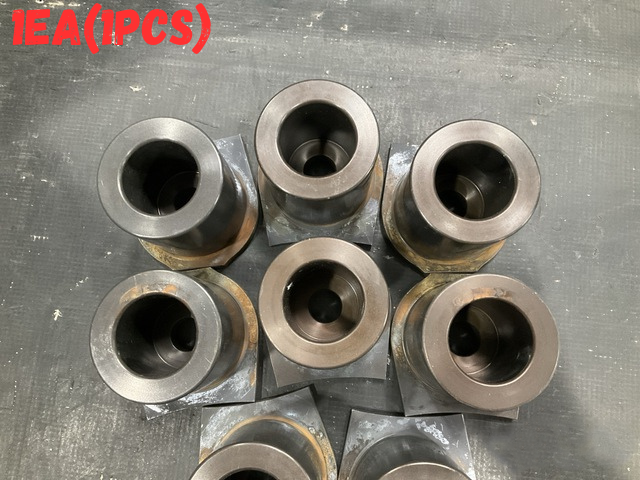

PCX Aerosystems 7-311411164-7 Lead Lag Link Main Rotorhub Bearing (3120-01-509-9129)
Flanged sleeve bearing, lead lag link main rotorhub, for the AH-64.
Part Information
- Manufacturer: PCX Aerosystems-Manchester, LLC
- Part Number: 7-311411164-7
- NSN: 3120-01-509-9129
- End Item: AH-64
Specifications
- Overall Length: 2.8600 in nominal
- Body Outside Diameter: 2.4965-2.4980 in
- Body Inside Diameter: 1.5015-1.5025 in
- Flange Outside Diameter: 3.1300 in nominal
- Flange Width: 0.4800 in nominal
- Corner Shape: All corners square
