NEW HEAVY DUTY M24235-2-064 RUBBER ROUND NONMETALLIC BUSHING 5365-01-283-3678
NEW HEAVY DUTY M24235-2-064 RUBBER ROUND NONMETALLIC BUSHING 5365-01-283-3678
Regular price
$200.09 USD
Regular price
Sale price
$200.09 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5365-01-283-3678 Specs and cross-references for NSN 5365-01-283-3678 (opens in a new tab) ↗
M24235-2-064 Nonmetallic Bushing (NSN 5365-01-283-3678)

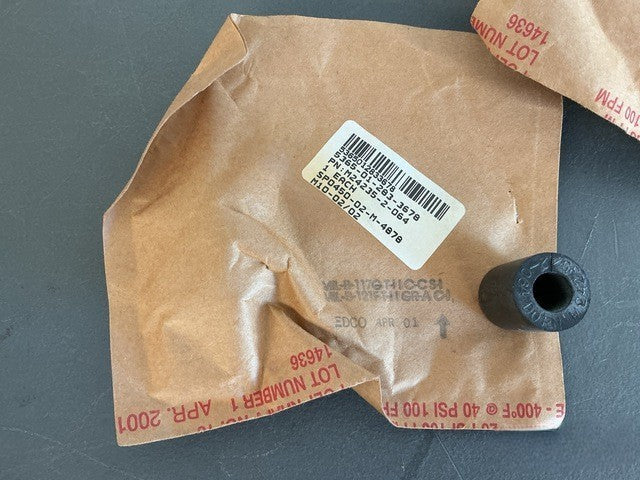

Rubber nonmetallic bushing, single centrally located hole and split design.
Part Information
- Design Control Activity: Military Specifications
- Part Number: M24235-2-064
- NSN: 5365-01-283-3678
Specifications
- Hardness: Nominal Durometer 50.0
- Overall Length: 1.250 in (nominal)
- Body Diameter: 0.986 in (nominal)
- Center Hole Diameter: 0.490 in (nominal)
- Design Type: Single centrally located hole and split
- Material: Rubber Chloroprene Class CR and Rubber Silicone Class Q
- Material Spec: MIL-R-15624 (1st material response); ZZ-R-765, Class 2A, Grade 50 (2nd material response)
