New M9 Ace Upstart Acquisitions 13214E2109 Straight Shaft | NSN 3040-01-222-7586 USA
New M9 Ace Upstart Acquisitions 13214E2109 Straight Shaft | NSN 3040-01-222-7586 USA
Regular price
$64.18 USD
Regular price
Sale price
$64.18 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 3040-01-222-7586 Specs and cross-references for NSN 3040-01-222-7586 (opens in a new tab) ↗

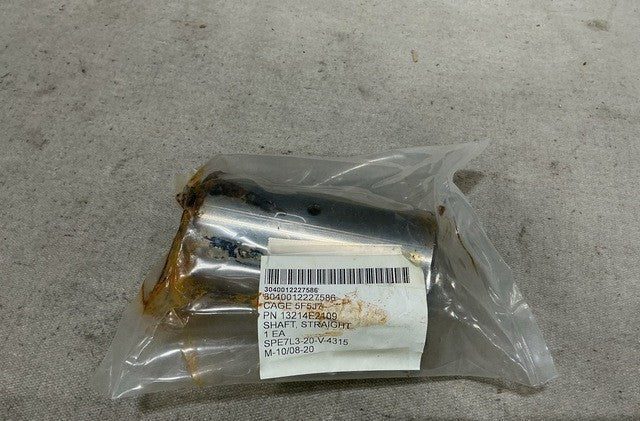

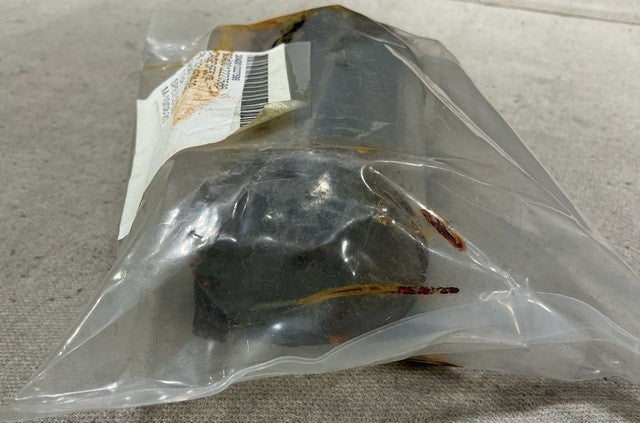

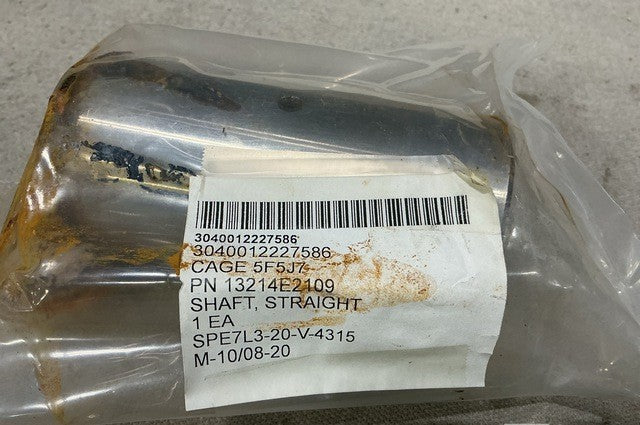

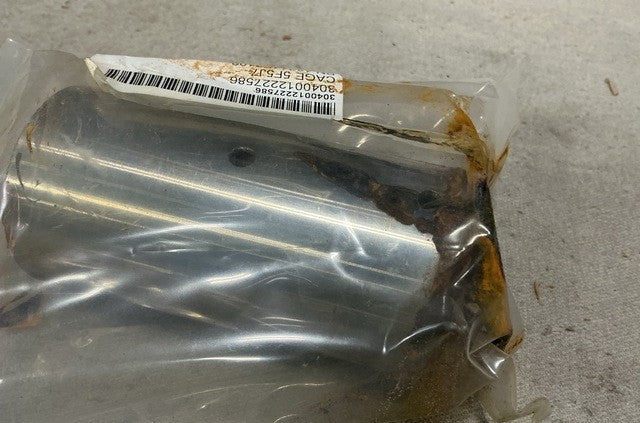

13214E2109 Straight Shaft (NSN 3040-01-222-7586)
Corrosion resisting steel straight shaft, overall length 4.438 in.
Part Information
- Design Control Activity: CECOM LR Center
- Part Number: 13214E2109
- NSN: 3040-01-222-7586
- CAGE Code: 97403
Specifications
- End Similarity: Not identical
- Overall Length: 4.438 in nominal
- First End Diameter: 2.3378 in nominal
- Second End Diameter: 2.3378 in nominal
- Second End Hole Diameter (First Hole): 0.2500 in nominal
- Second End Distance From Hole Center to End: 0.328 in nominal
- Second End Hole Depth: 0.6689 in nominal
- Second End Distance Between Hole Centers: 1.862 in nominal
- Second End Angle Between Holes: 180.0 degrees nominal
- Surface Finish: 16.0 microinches
- Material: Steel, corrosion resisting
- Material Document and Classification: SAE 8620 or SAE 4620 or SAE 4820 (all material responses)
