NIMITZ CLASS CVN OIL STATES INDUSTRIES 5342-00- RESILIENT MOUNT 5342-00-543-3574

AIR & LIQUID SYSTEMS CORPORATION 280-0010-01 Weapon System Resilient Mount (5342-00-543-3574)

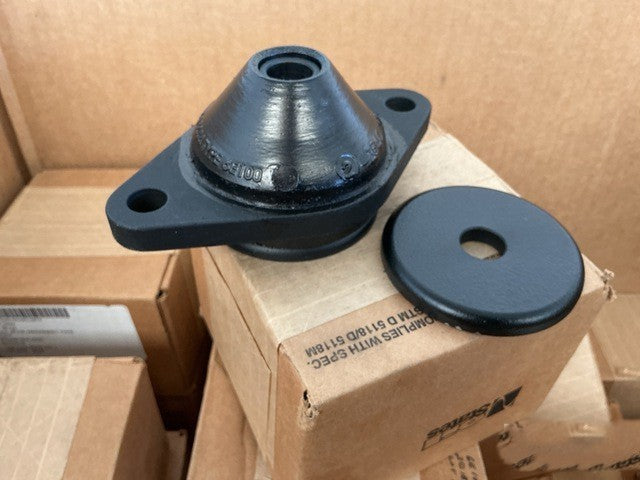

Steel weapon system resilient mount with rubber elastomer per MIL-M-17508, flange-mounted, 100 lb maximum load rating.

Part Information

• Manufacturer: Air & Liquid Systems Corporation
• Part Number: 280-0010-01
• NSN: 5342-00-543-3574
• End Item: NIMITZ CLASS CVN

Specifications

• Inside Diameter: 0.641 in nominal
• Flange Thickness: 0.438 in nominal
• Distance Between Mounting Hole Centers: 4.750 in nominal
• Flange Length: 5.875 in nominal
• Flange Width: 3.375 in nominal
• Load Rating: 100 lb maximum
• Distance From Flange to End: 1.875 in nominal
• Flange Mounting Hole Diameter: 0.516 in nominal
• Load/Frequency Range: 50 lb load for 7.65 to 8.65 Hz
• Height: 2.500 in nominal
• Material: Steel overall
• Special Features: Rubber, Elastomer, MIL-M-17508
