NIMITZ CLASS CVN SHIP 121102AA-2A ACTUATOR KNOB ROTARY SWITCH 5930-01-041-2983

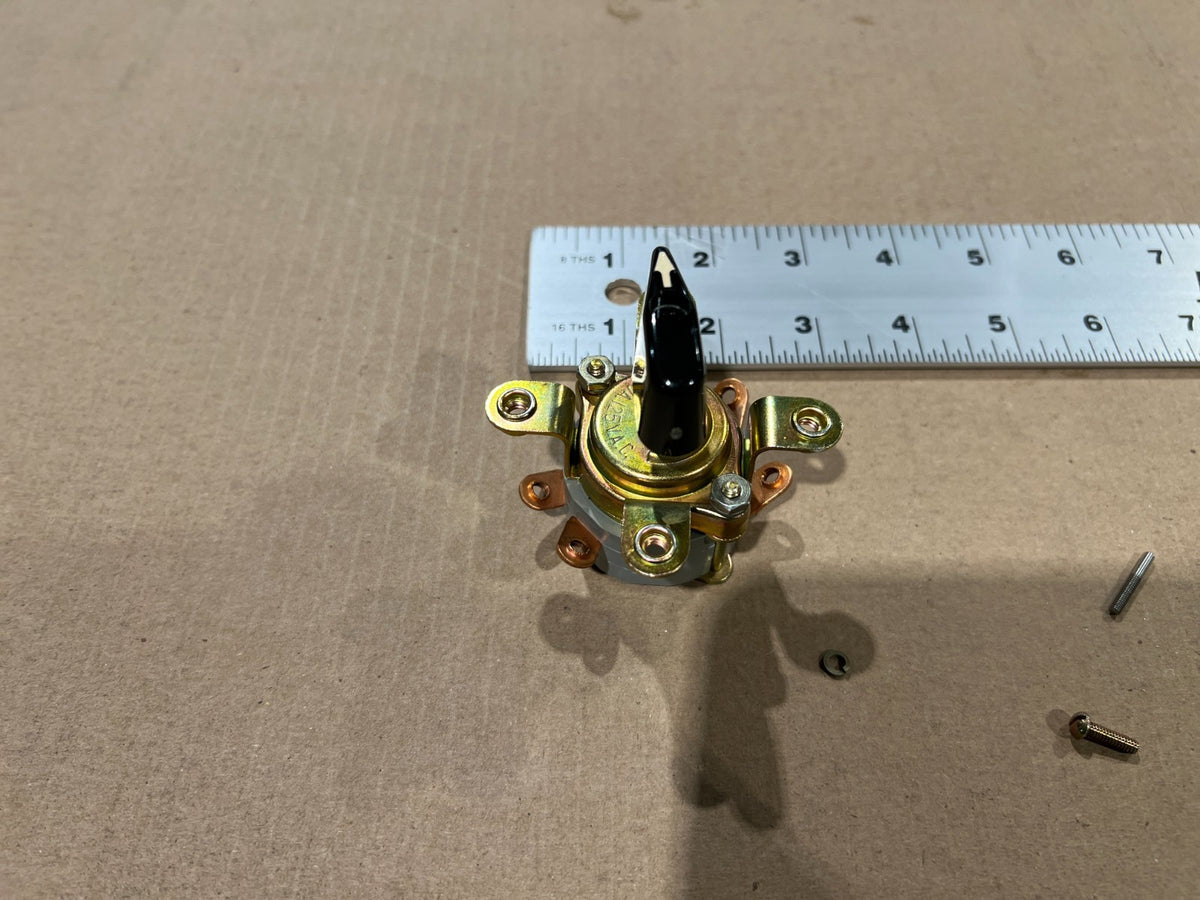

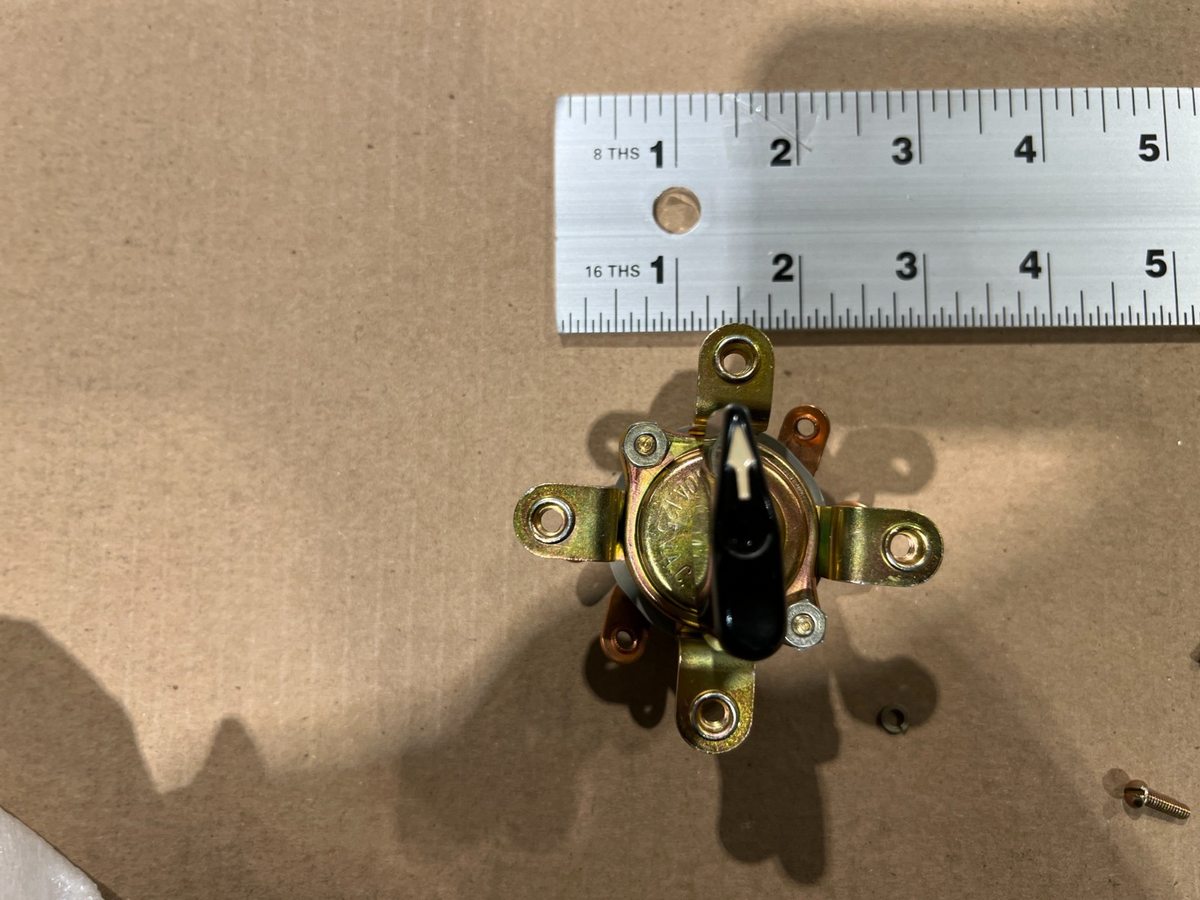

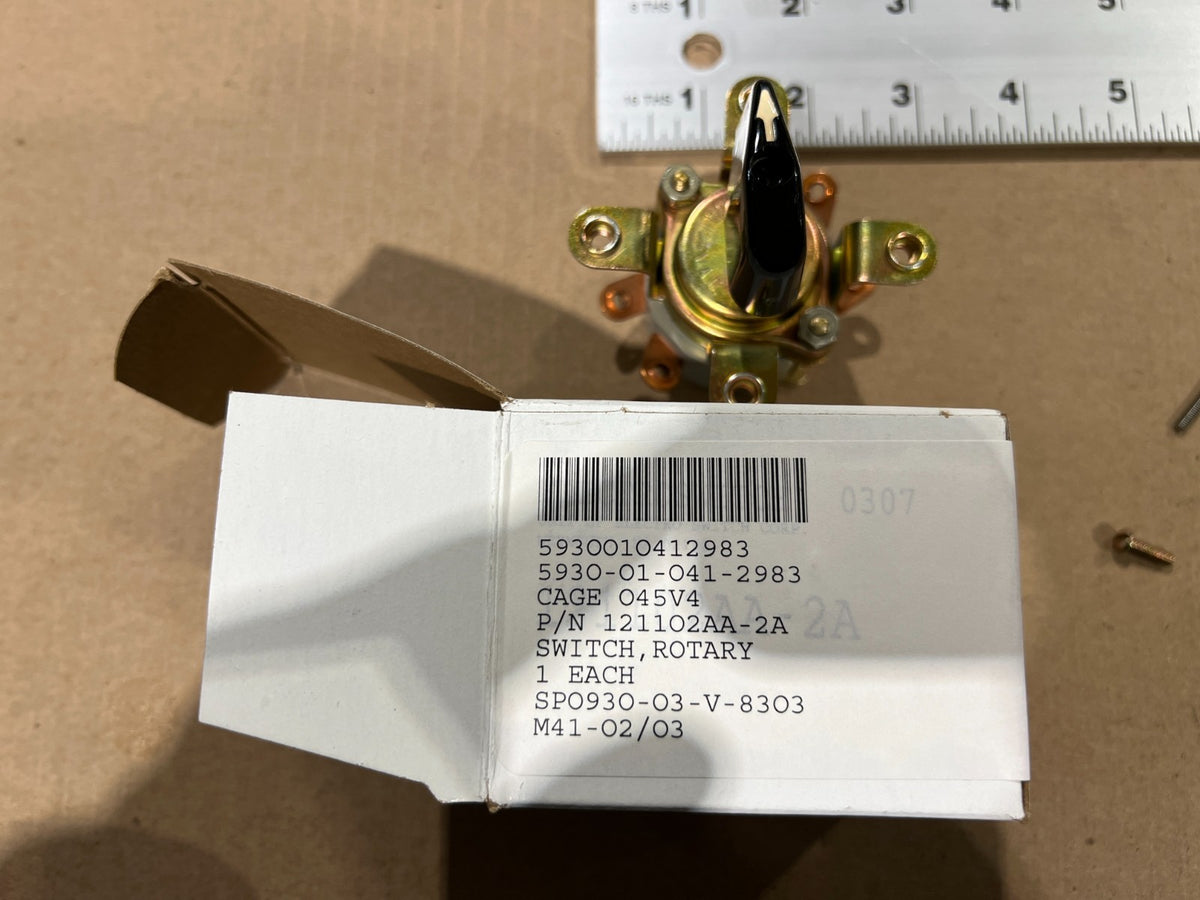

ELECTRO SWITCH CORP 121102AA-2A Rotary Switch (5930-01-041-2983)

Explosion-proof rotary switch with actuator knob, for the NIMITZ CLASS CVN SHIP.

Part Information

• Manufacturer: Electro Switch Corp
• Part Number: 121102AA-2A
• NSN: 5930-01-041-2983
• End Item: NIMITZ CLASS CVN SHIP
• CAGE Code: (per manufacturer)

Specifications

• Hazardous Location Protection: Explosion Proof
• Overall Length: 2.956 in nominal
• Overall Height: 2.500 in max
• Overall Width: 2.500 in max
• Pole Quantity: 1
• Throw Quantity: 2
• Contact Voltage Rating: 125.0 V
• Contact Load Current Rating: 10.0 A AC, resistive load, sea level
• Switch Actuator Positioning Increment: 90.0 degrees
• Switch Actuator Indexing Position Quantity: 2
• Mounting Method: Single mounting facility, threaded hole(s)
• Mounting Facility Pattern: Four position rectangular
• Terminal Type: Tab w/screw
• Thread Size: 0.190 in, 24 threads per inch, UNC
