NIMITZ CLASS CVN SHIP MIL-T-55164/22 TERMINAL BOARD A-A-5-125 5940-00-829-0430

MIL-T-55164/22 Terminal Board (5940-00-829-0430)

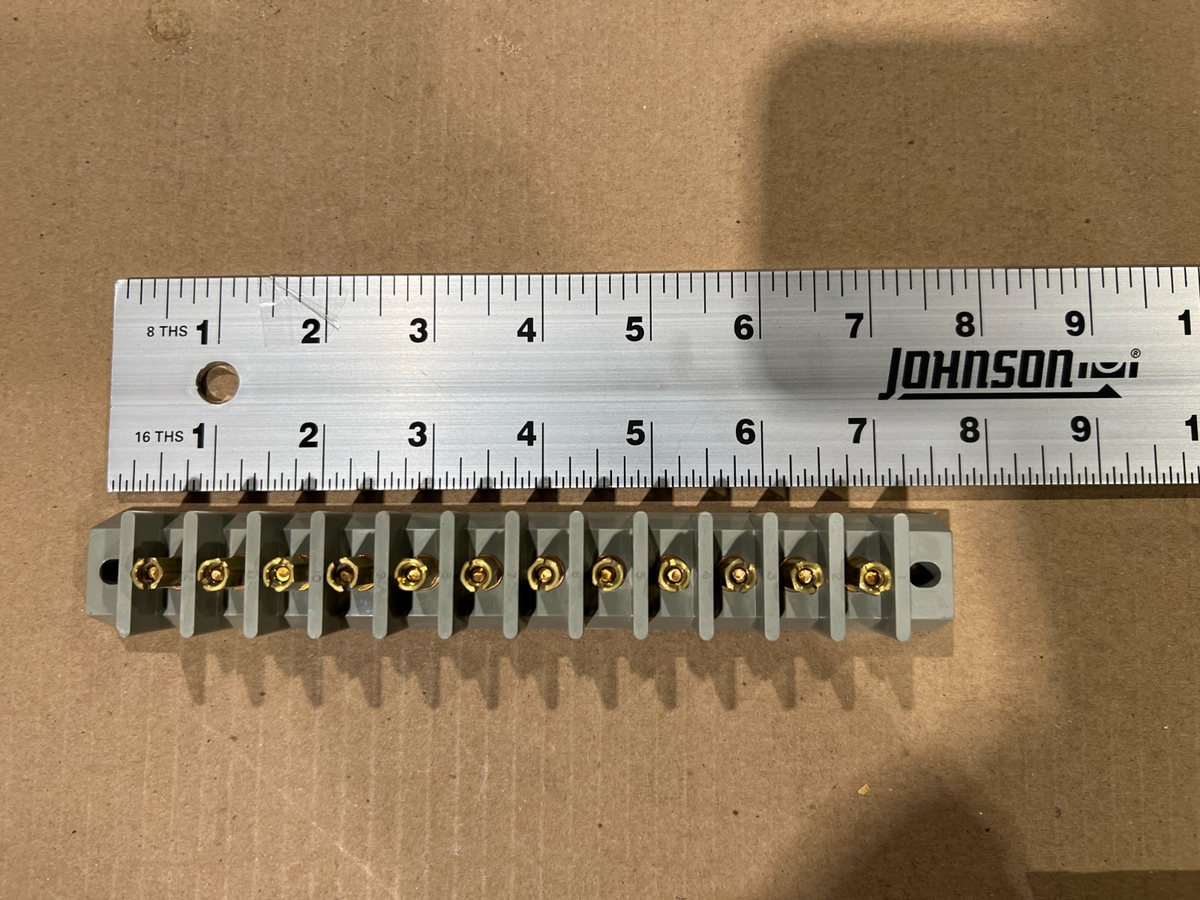

Molded plastic terminal board, single row, 12 nonfeedthru terminals, hollow construction without insulated strip.

Part Information

• Design Control Activity: Military Specifications
• Part Number: MIL-T-55164/22
• NSN: 5940-00-829-0430

Specifications

• Material: Plastic board
• Board Construction: Hollow construction without insulated strip
• Terminal Design: Nonfeedthru, Single, Type 599
• Terminal Quantity: 12
• Terminal Pattern: Single row
• Terminal Row Quantity: 1
• Center to Center Distance Between Terminals: 0.531 in
• Board Overall Length: 7.500 in
• Board Overall Width: 1.062 in
• Board Overall Height: 0.906 in
• Board Height Excluding Terminals: 0.875 in
• Base Thickness: 0.469 in
• Mounting Facility Type and Quantity: Slot, 2
• Mounting Slot Length: 0.198 in
• Mounting Slot Width: 0.172 in
• Center to Center Distance Between Mounting Facilities (Parallel to Length): 7.000 in
• Distance from Bottom Edge to Center of Mounting Hole: 0.531 in
• Distance from Left Edge to Center of First Mounting Facility: 0.250 in
• Spec: MIL-T-55164/22 (superseded by AA-59125/22)
