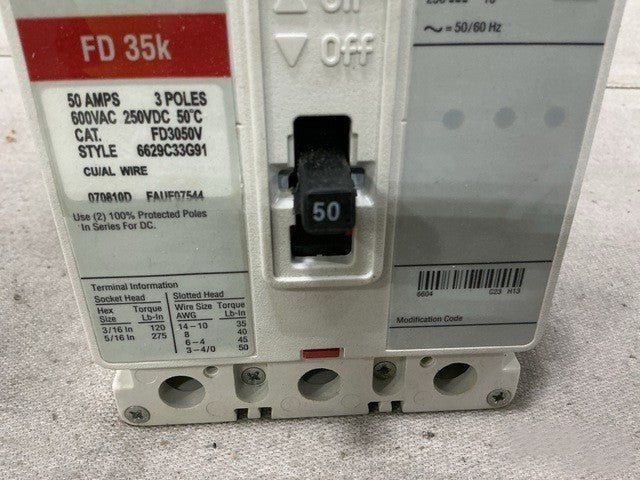

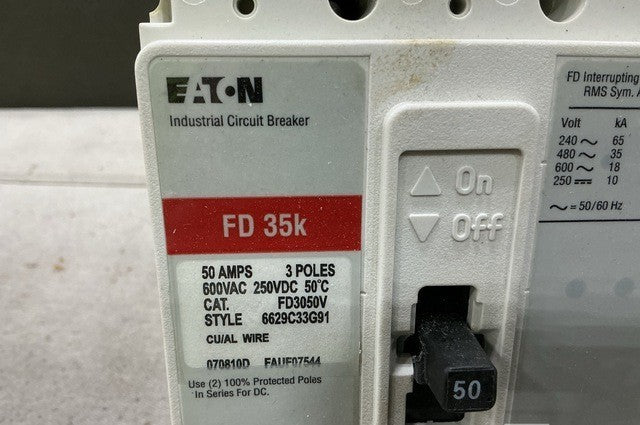

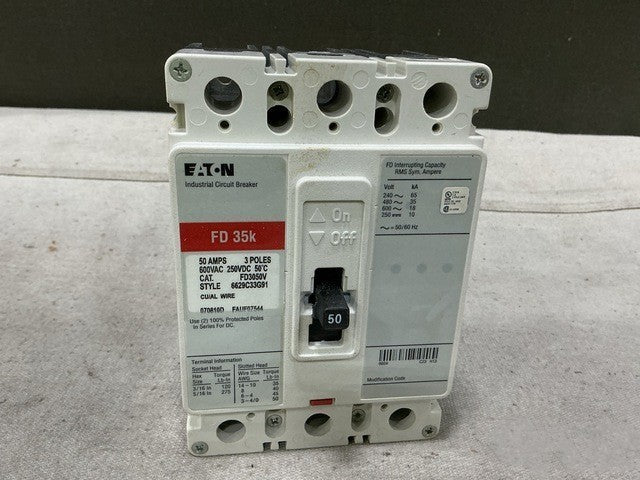

Nimitz Cvn Eaton FD3050V 250VDC 600VAC 50AMP Circuit Breaker 5925-01-269-5983

WESTINGHOUSE HFB3050V Circuit Breaker (5925-01-269-5983)

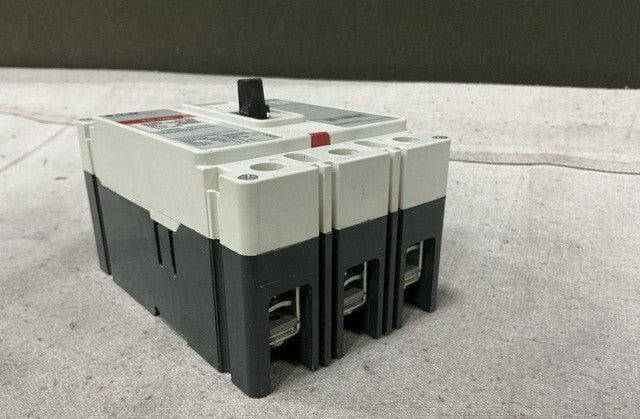

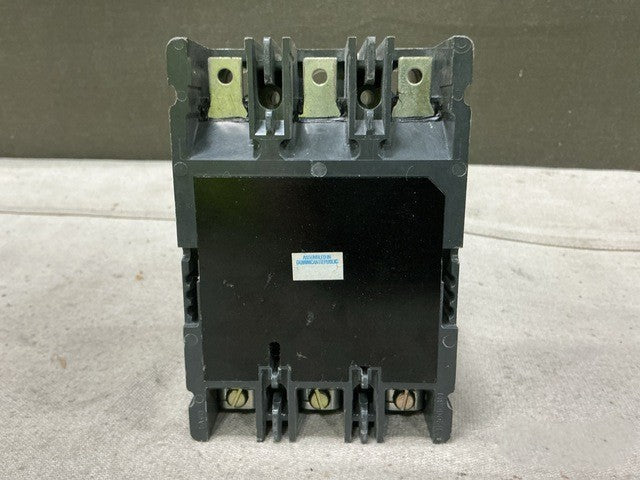

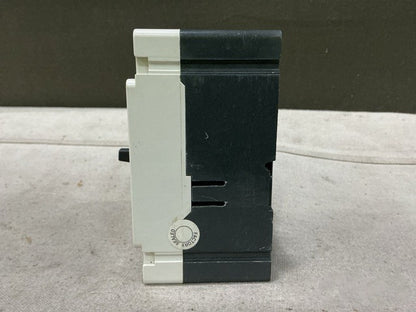

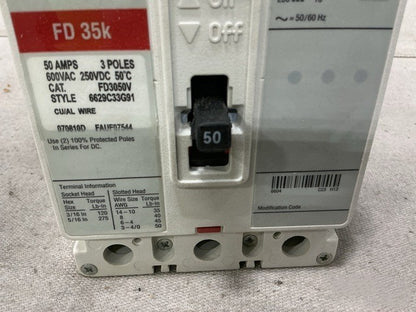

3-pole molded case circuit breaker, 600VAC/50A per pole, for the Nimitz CVN.

Part Information

• Manufacturer: Westinghouse Electric Corp
• Part Number: HFB3050V
• NSN: 5925-01-269-5983
• End Item: Nimitz Cvn

Specifications

• Pole Quantity: 3
• Operating Voltage: 600V AC per pole
• Continuous Load Current Rating: 50.0A AC per pole

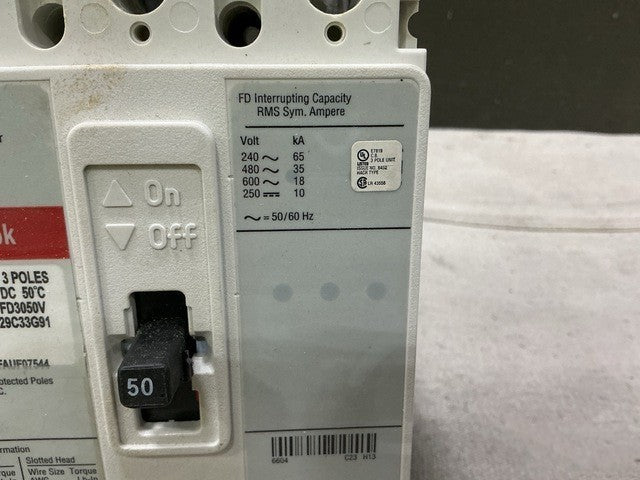

• Maximum Interrupting Capacity: 18,000A AC per pole
• Trip Release Method: Thermal-magnetic
• Trip Release Characteristic: Instantaneous
• Reset Method: Manual
• Main Contact Tripping Mechanism: Trip free
• Manual Actuator: Toggle, 1, trip-reset
• Enclosure Protection: Dustproof
• Case Material: Plastic

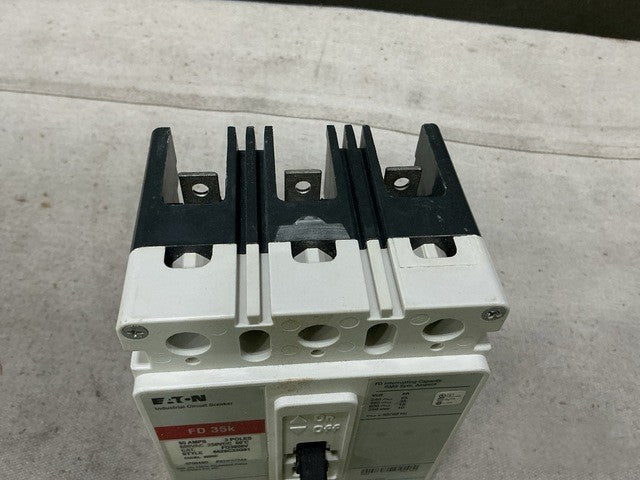

• Terminal Type: Compression, 6
• Arc Quenching Method: Air
• Frequency: 60 Hz

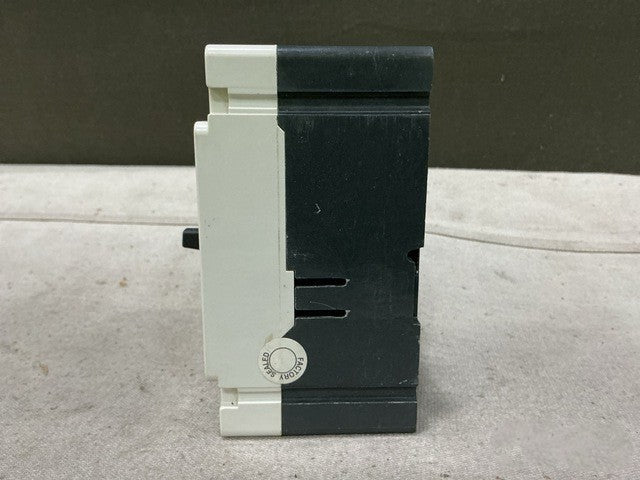

• Body Dimensions: 6.000 in L x 4.125 in W x 3.375 in H
• Mounting: 4 unthreaded holes, 0.164 in diameter
• Reference Number: 5684D43G40
