Nimitz CVN Parker 1H2H0A00273903 Line Actuating Cylinder ASSY | NSN 3040-01-425-1017
Nimitz CVN Parker 1H2H0A00273903 Line Actuating Cylinder ASSY | NSN 3040-01-425-1017
Regular price
$3,326.66 USD
Regular price
Sale price
$3,326.66 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 3040-01-425-1017 Specs and cross-references for NSN 3040-01-425-1017 (opens in a new tab) ↗

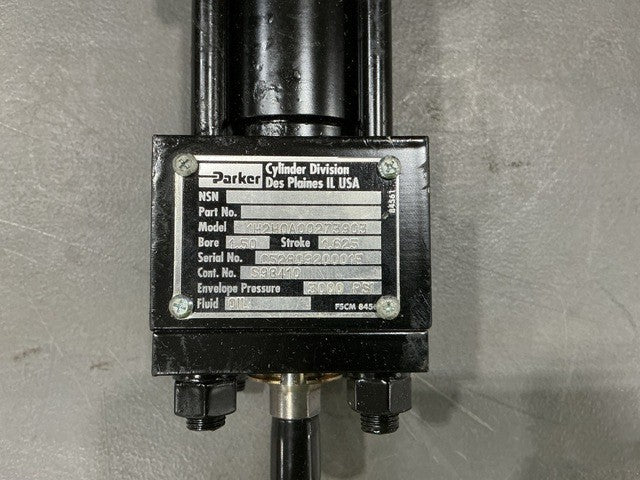

PARKER HANNIFIN 1.50F2HKTVS14A1.625 Linear Actuating Cylinder Assembly (NSN 3040-01-425-1017)

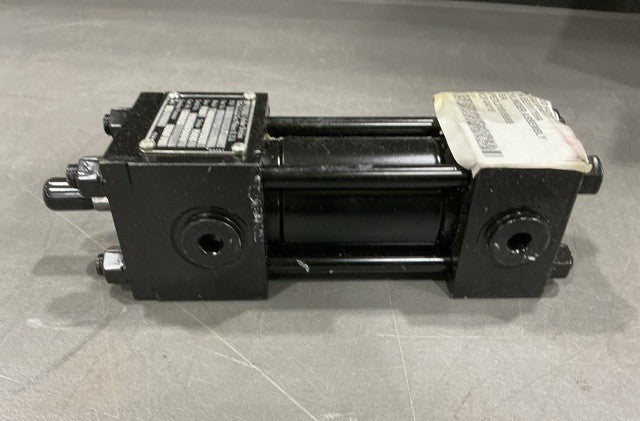

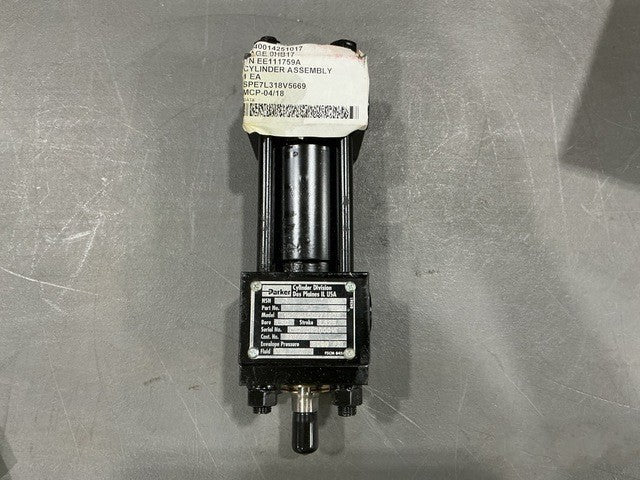

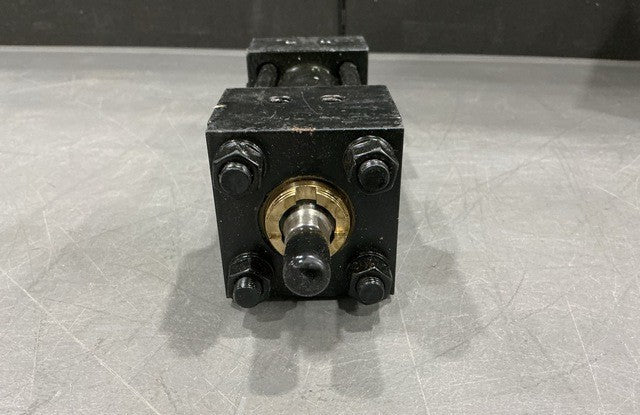

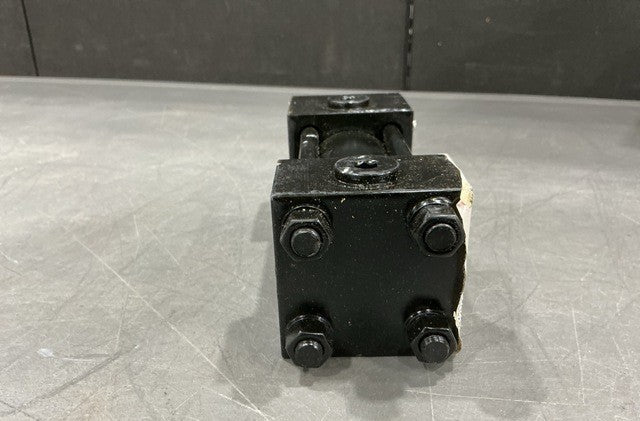

Steel hydraulic linear actuating cylinder assembly, single acting, single cylinder, side tapped mounting, for the NIMITZ CLASS CVN.
Part Information
- Manufacturer: Parker Hannifin Corporation
- Part Number: 1.50F2HKTVS14A1.625
- NSN: 3040-01-425-1017
- End Item: NIMITZ CLASS CVN
Specifications
- Bore Diameter: 1.500 in nominal
- First End Outside Diameter: 0.625 in nominal
- First End External Thread Length: 0.750 in nominal
- Mounting Provision: Threaded mounting holes
- Mounting Facility Thread: UNC, 0.375 in nominal, 16 threads/in, right-hand
- First Piston Rod End Thread: UNF, 0.438 in nominal, 20 threads/in, Class 1A
- Port Thread: UNF, 0.875 in nominal, 14 threads/in, Class 1B
- Integral Valve Operation: Hydraulic
- Body Material: Steel

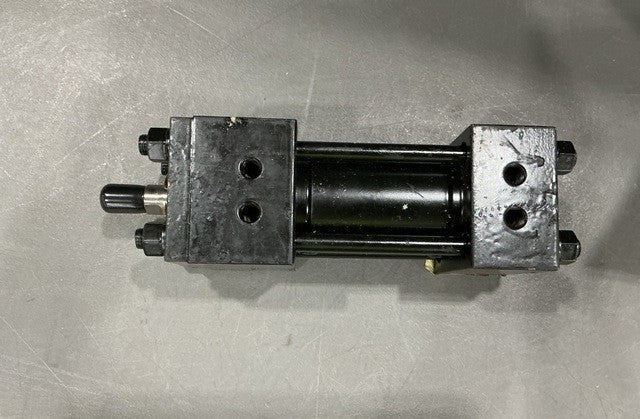

- Special Features: Side tapped mounting
