NSN 6150-12-322-2522 Electrical Lead

P/N 020.03.0006

NSN: 6150-12-322-2522
Part Number: 020.03.0006

Product Description

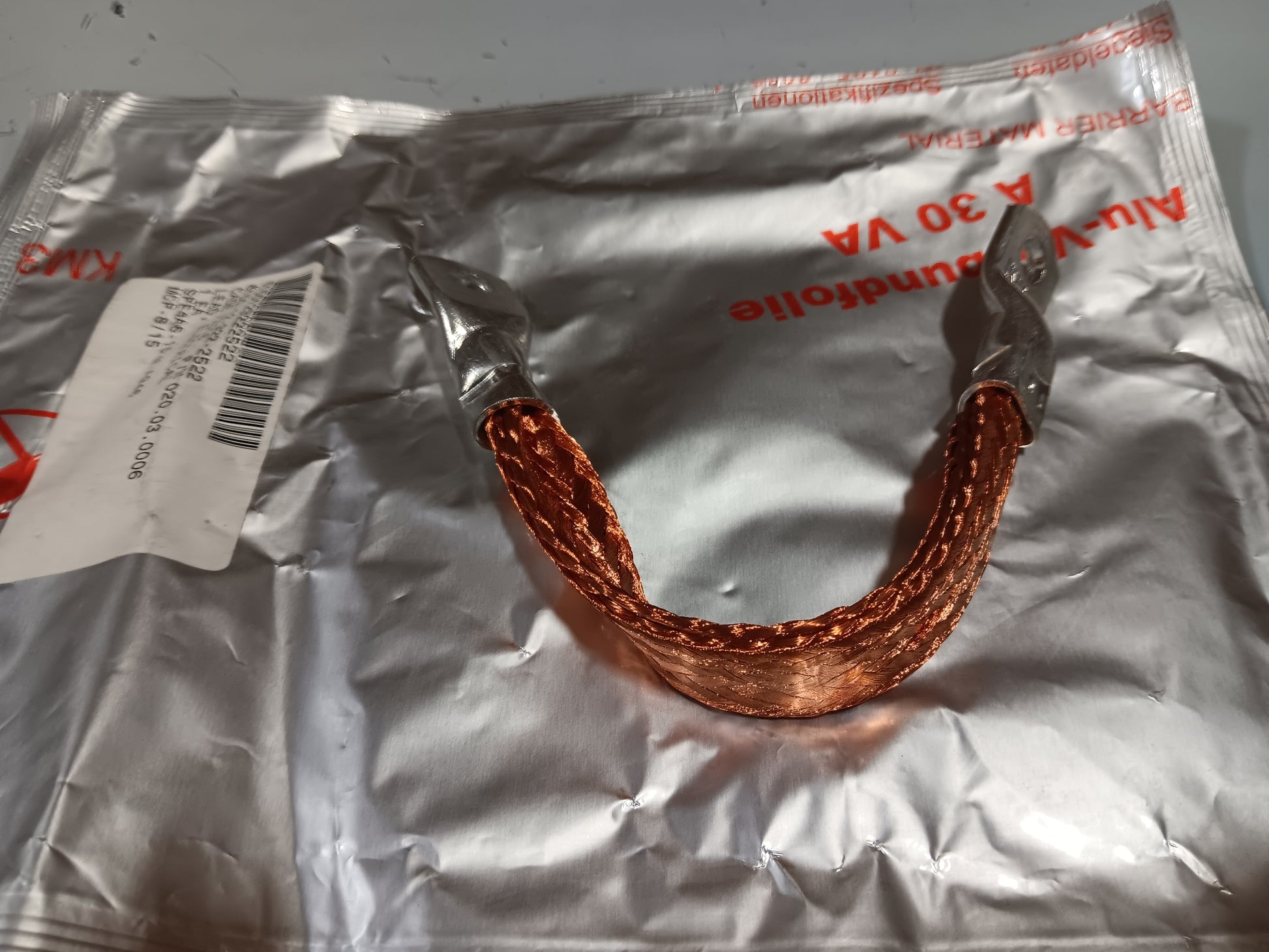

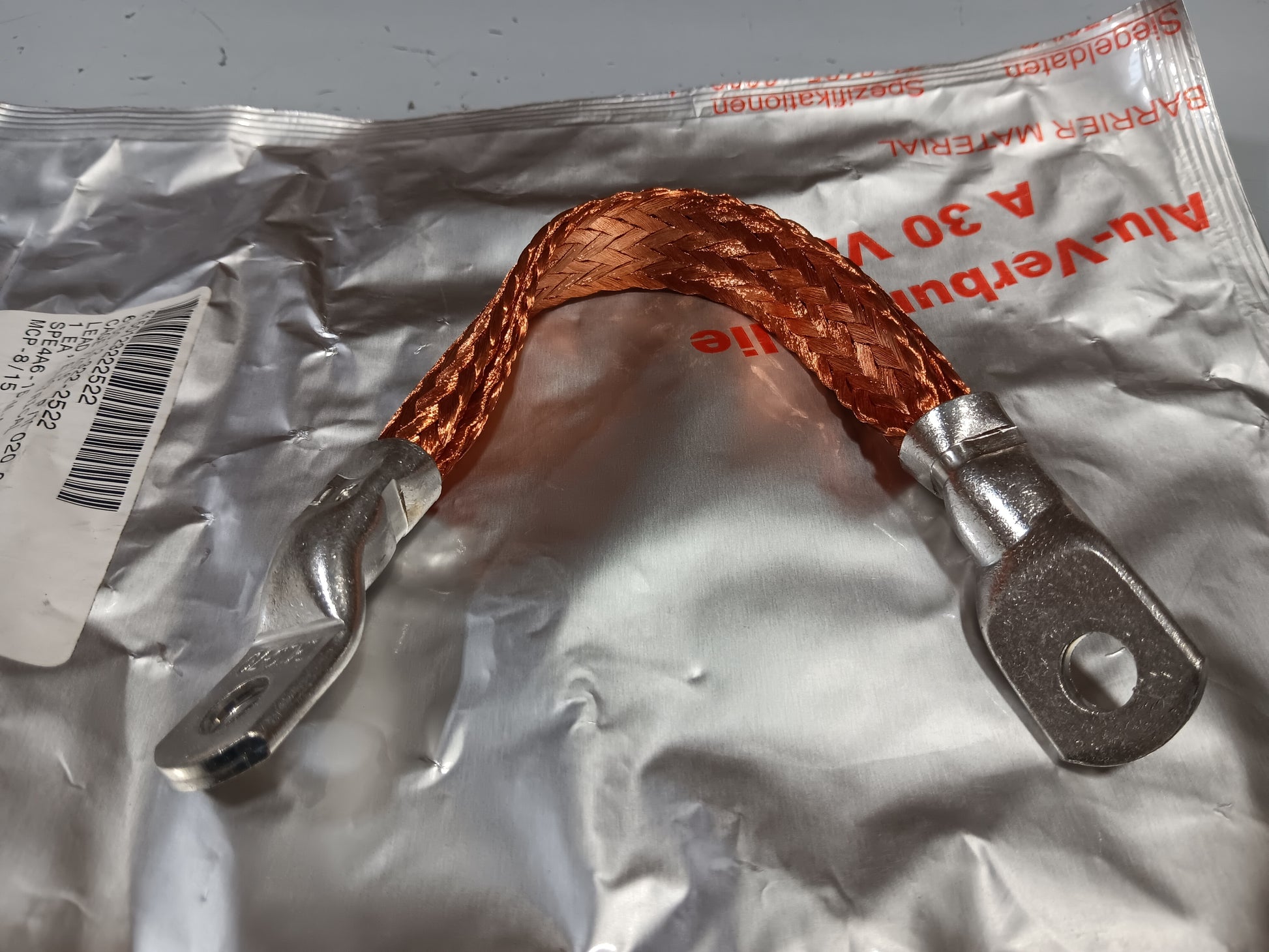

This military-specification electrical lead is designed for demanding electrical grounding, bonding, and power distribution applications. Constructed from heavy-duty braided copper and equipped with terminal lugs on both ends, it provides excellent conductivity, flexibility, and durability in harsh operating environments.

Ideal for military vehicles, communications equipment, industrial machinery, restoration projects, and electrical system maintenance.

Features

• Genuine military-specification component
• Heavy-duty braided copper construction
• High-conductivity design
• Lug terminals installed on both ends
• Flexible strap configuration
• Suitable for grounding and bonding applications
• Corrosion-resistant construction
• Designed for long service life

Specifications

• NSN: 6150-12-322-2522
• Part Number: 020.03.0006
• Item Name: Electrical Lead
• Overall Length: 285 mm (11.2")
• Conductor Material: Copper
• Conductor Style: Braided Flat Strap
• Conductor Size: 40 mm²

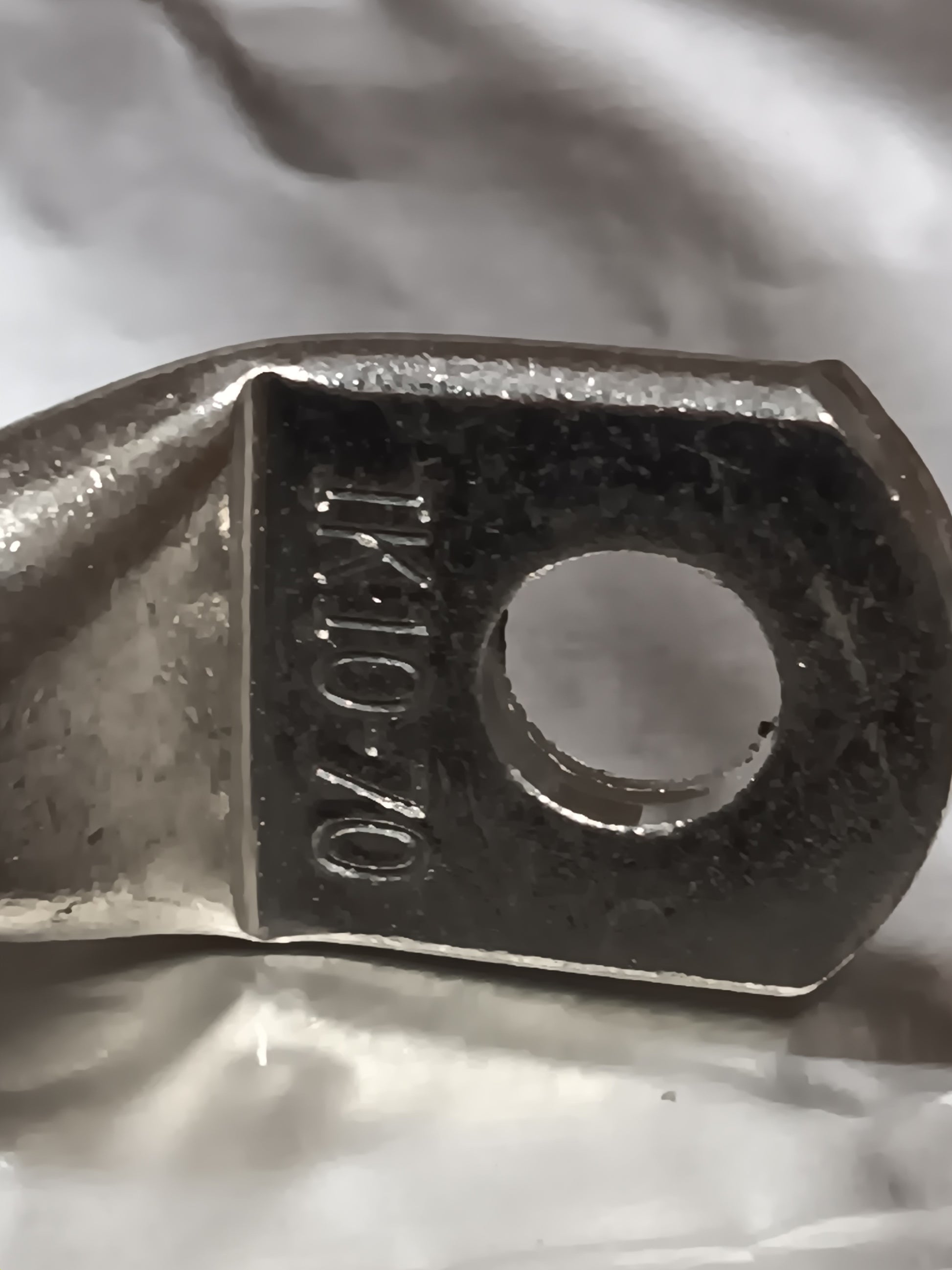

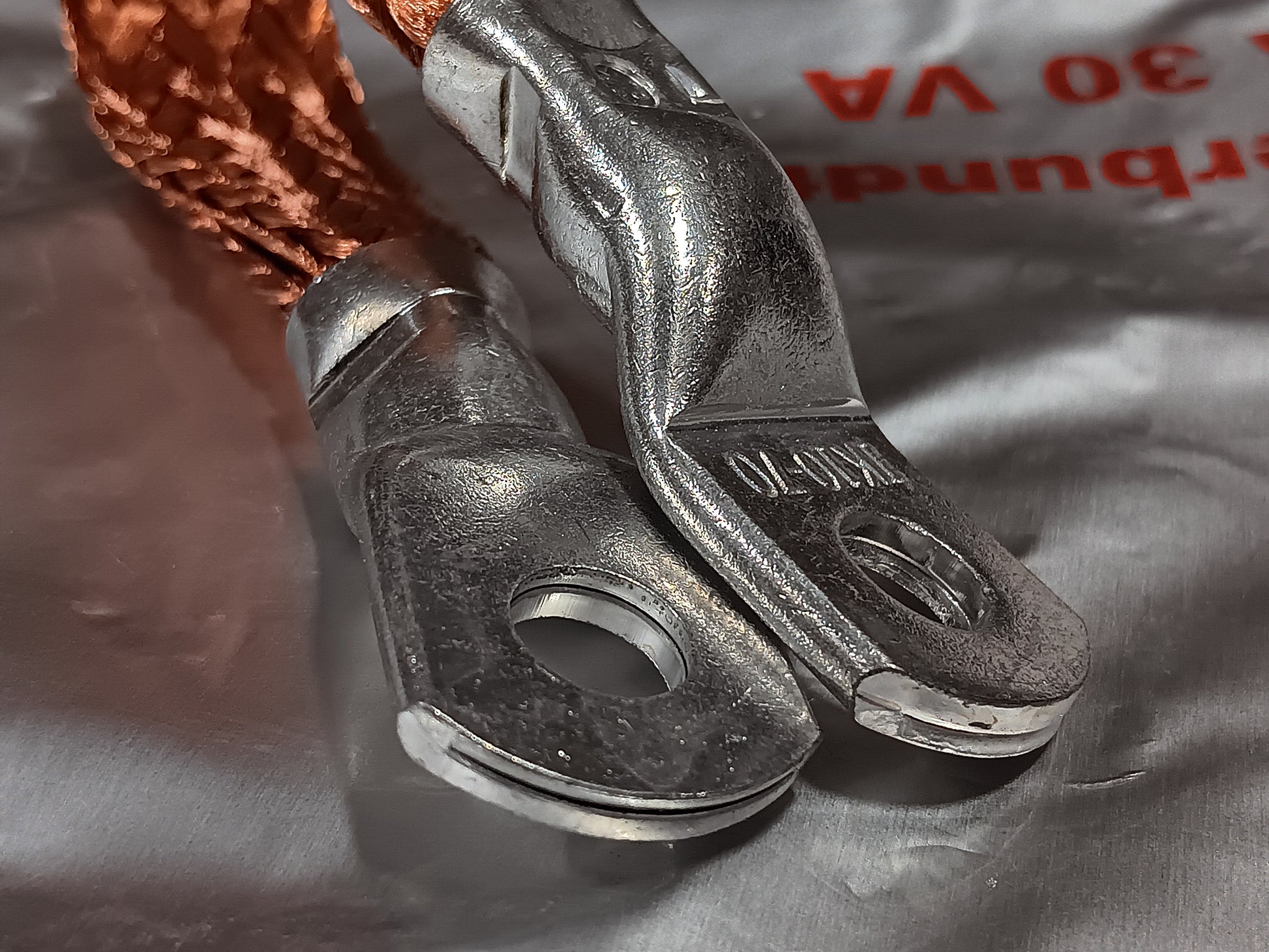

• Terminal Type: Lug Terminals
• Terminal Hole Diameter: 10.5 mm
• Configuration: Terminal Lugs on Both Ends

Common Applications

• Vehicle Ground Straps
• Electrical Bonding Systems
• Military Vehicle Maintenance
• Communications Equipment
• Electrical Power Distribution
• Industrial Equipment Repair
• Restoration Projects
