OHIO 23N CUSTOM HYDRAULIC CMC-4-5903-1/2-12 HOSE TO BOSS ELBOW 4730-01-192-0417

MIL-F-24787 Hose To Boss Elbow (NSN 4730-01-192-0417)

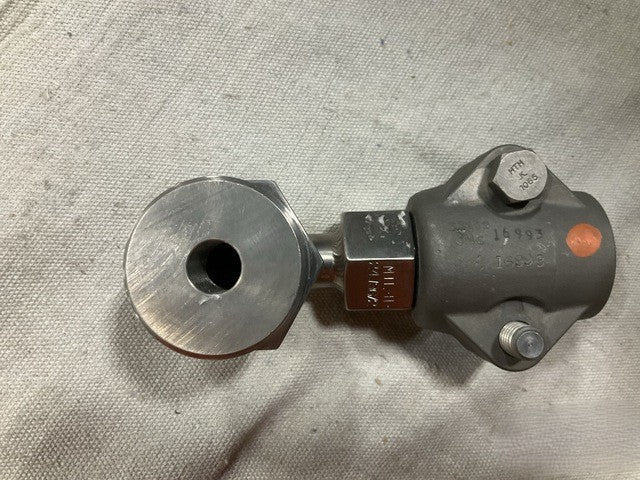

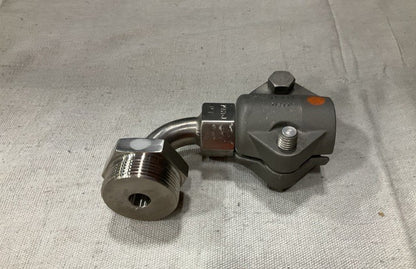

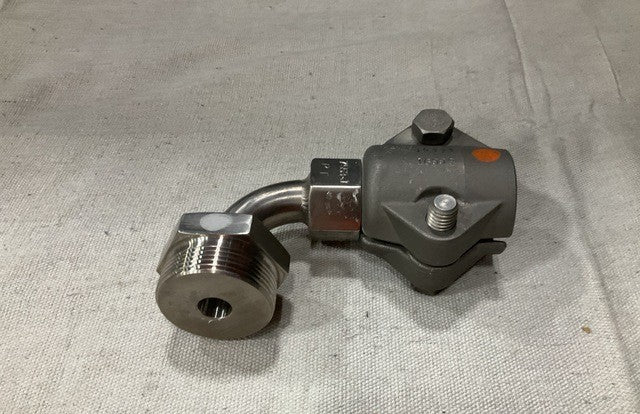

Nickel alloy 90-degree hose-to-boss elbow, unthreaded hose end and threaded external boss end, for the 23N Ship, Ohio Class SSN (Trident).

Part Information

• Design Control Activity: Military Specifications
• Part Number: MIL-F-24787
• NSN: 4730-01-192-0417
• End Item: 23N Ship, Ohio Class SSN (Trident)

Specifications

• Material (Overall): Nickel Alloy
• Flow Angle: 90.0 degrees
• Thread Class: 3A
• Leg Length, First End: 4.510 in. nominal
• Leg Length, Second End: 2.310 in. nominal
• Connection Type, First End: Unthreaded External Hose
• Connection Type, Second End: Threaded External Boss
• Nominal Thread Size, Second End: 1.750 in.
• Thread Quantity Per Inch: 12
• Thread Series Designator, Second End: UN
• Nominal Inside Diameter Hose Accommodated, First End: 0.750 in.

Included Components

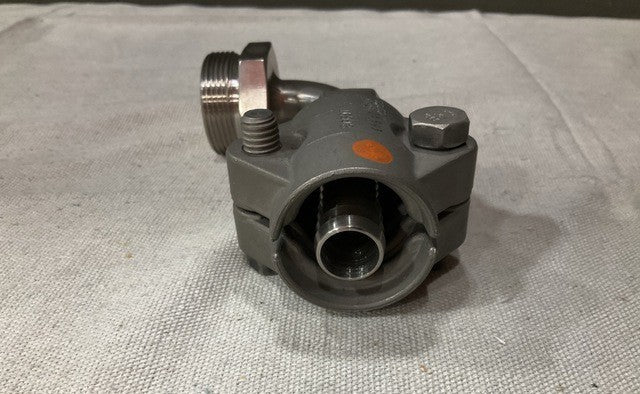

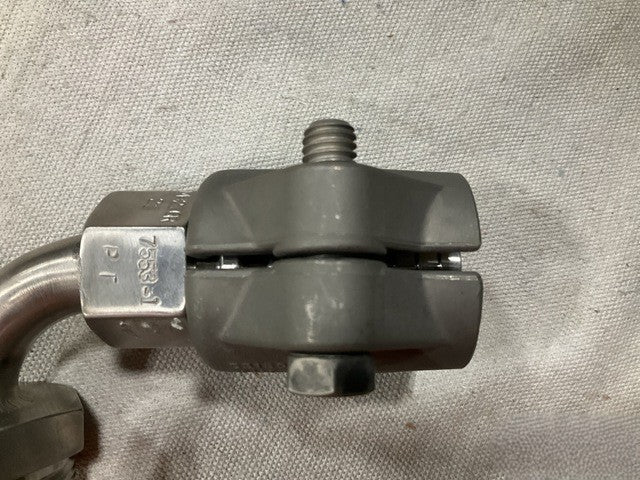

• Segmented Hose Socket Assembly - Qty 1

Technical References

• MIL-F-24787: Fittings, End, Reusable for Flexible Hose Assemblies, General Specification For
