PLS LOADING SYSTEM OSHKOSH 1943960 SQUARE ANGLE BRACKET 5340-01-363-3312

OSHKOSH DEFENSE 1943960 Angle Bracket (5340-01-363-3312)

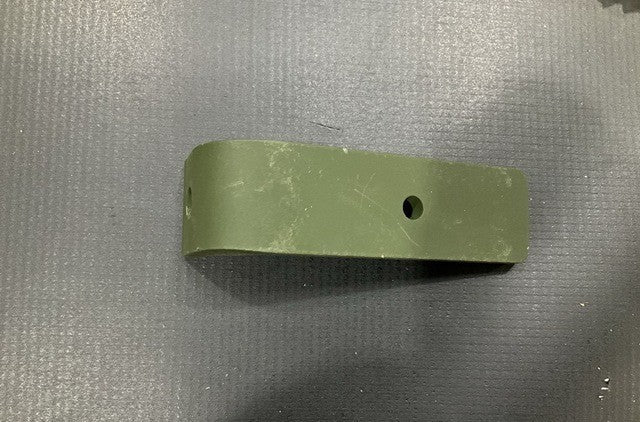

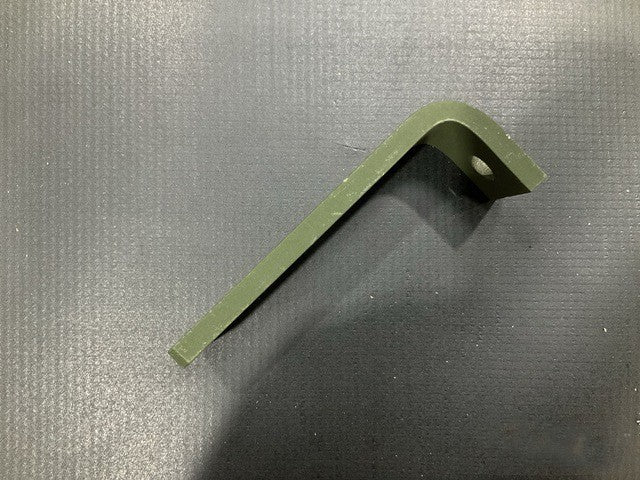

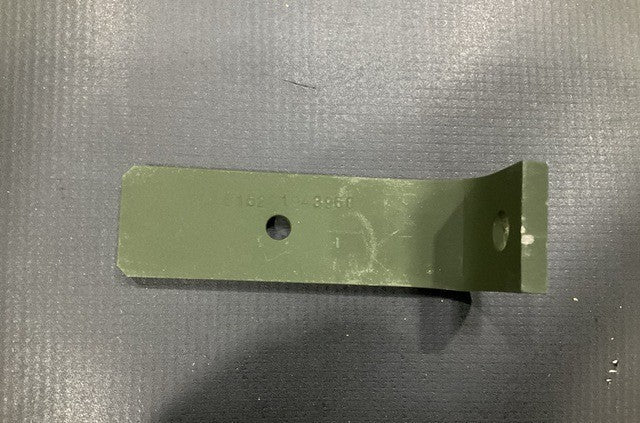

Angle bracket, plain mounting holes, two legs with differing dimensions, for the PLS Loading System.

Part Information

• Manufacturer: Oshkosh Defense LLC
• Part Number: 1943960
• NSN: 5340-01-363-3312
• End Item: PLS Loading System
• CAGE Code: (Oshkosh Defense LLC)

Specifications

• Mounting Hole Type: Plain
• First Leg Length: 1.500 in nominal
• First Leg Width: 1.250 in nominal
• First Leg Thickness: 0.250 in nominal
• First Leg Hole Diameter: 0.406 in nominal
• First Leg Angle: 0.25 radians nominal
• Second Leg Length: 4.250 in nominal
• Second Leg Width: 1.250 in nominal
• Second Leg End Width: 1.010 in nominal
• Second Leg Thickness: 0.250 in nominal
• Second Leg Hole Diameter: 0.281 in nominal
• Second Leg Chamfer Angle: 45.0 degrees nominal
• Second Leg Relationship to First Leg: Not Identical
