T-11 CR TRACTOR 5S3820 SOCKET FLANGE TO HOSE ELBOW 4730-01-284-6103 USA STOCK
T-11 CR TRACTOR 5S3820 SOCKET FLANGE TO HOSE ELBOW 4730-01-284-6103 USA STOCK
Regular price
$88.79 USD
Regular price
Sale price
$88.79 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4730-01-284-6103 Specs and cross-references for NSN 4730-01-284-6103 (opens in a new tab) ↗

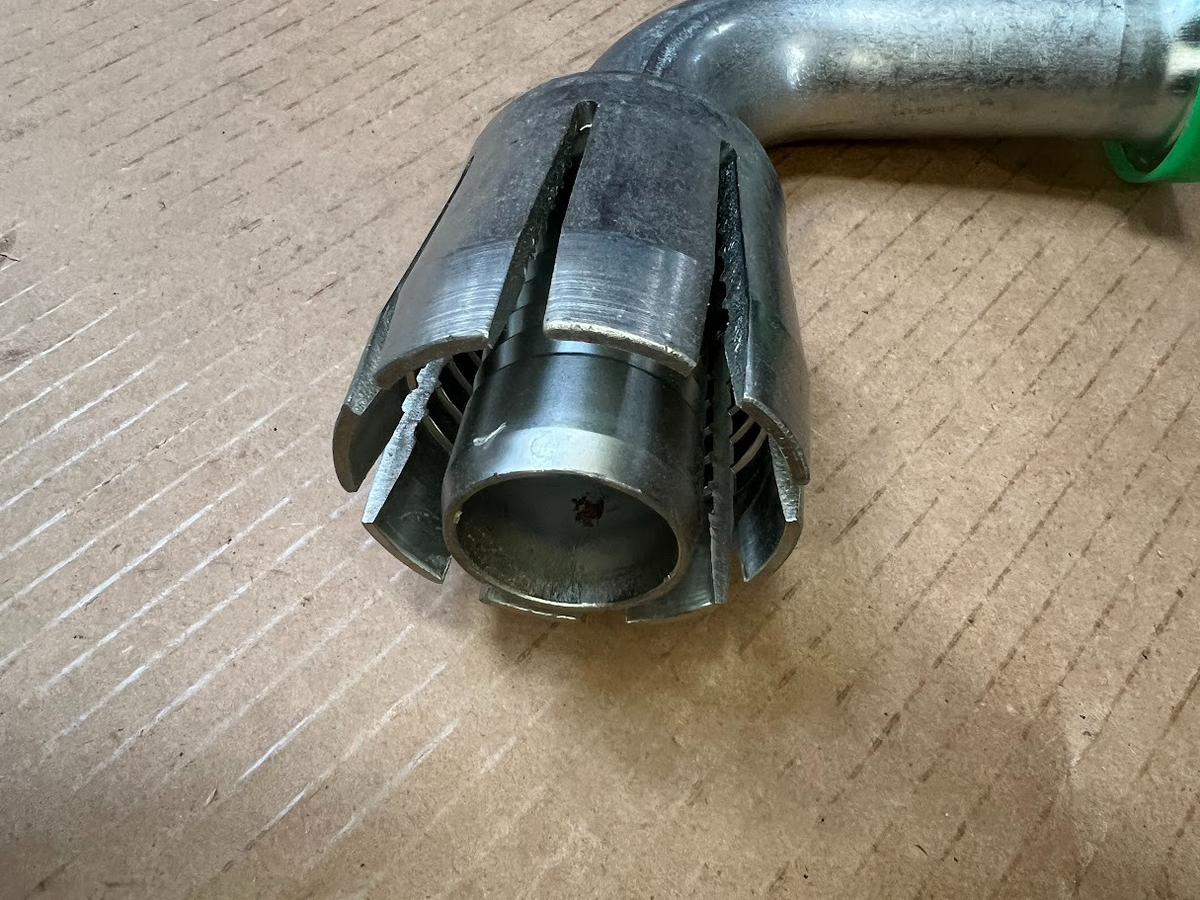

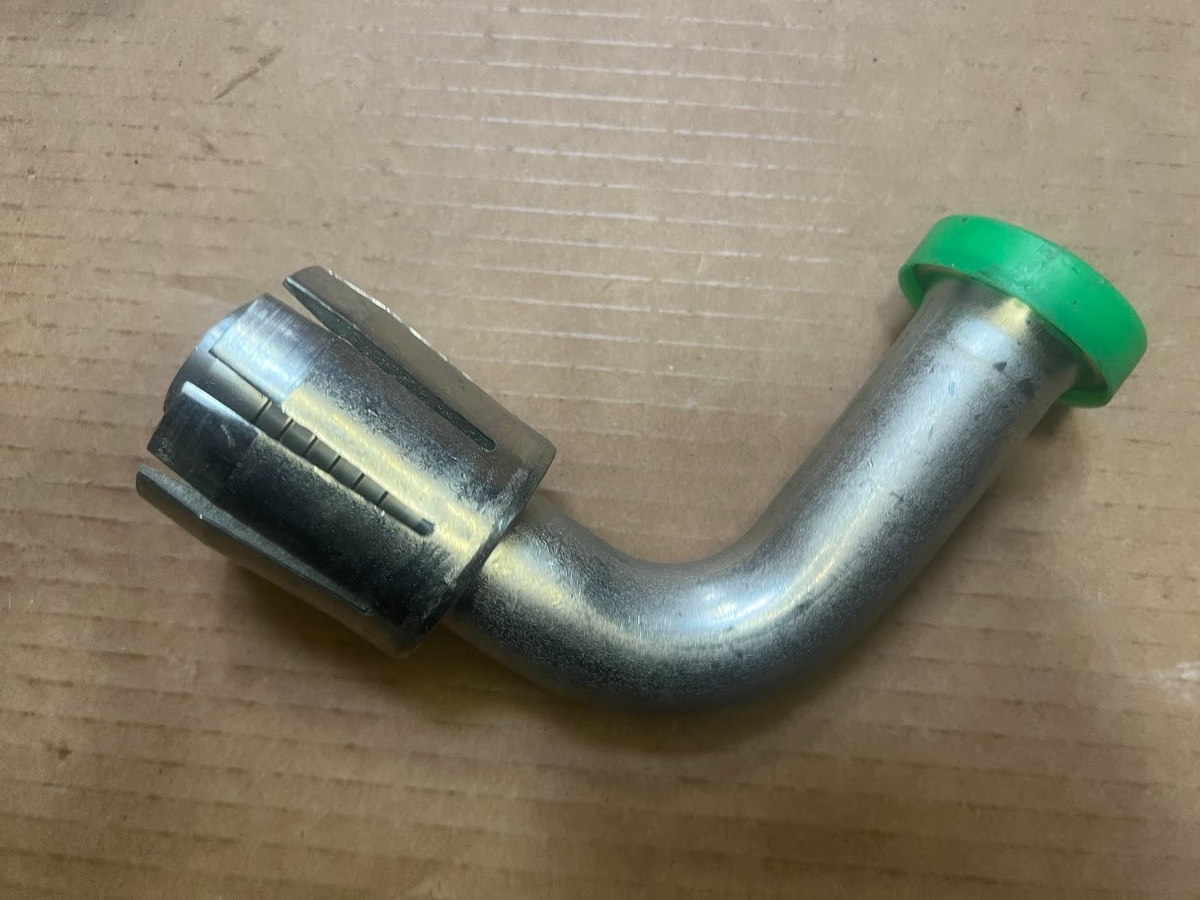

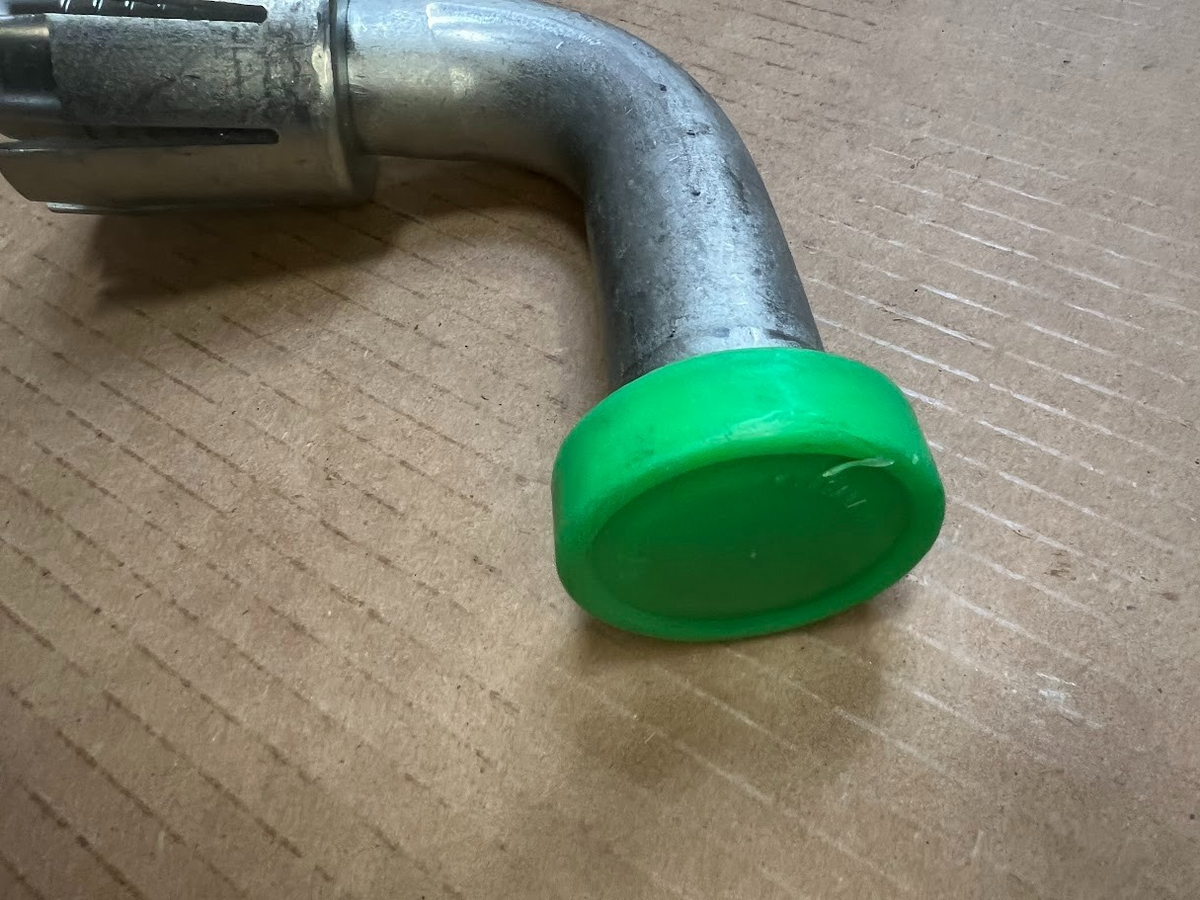

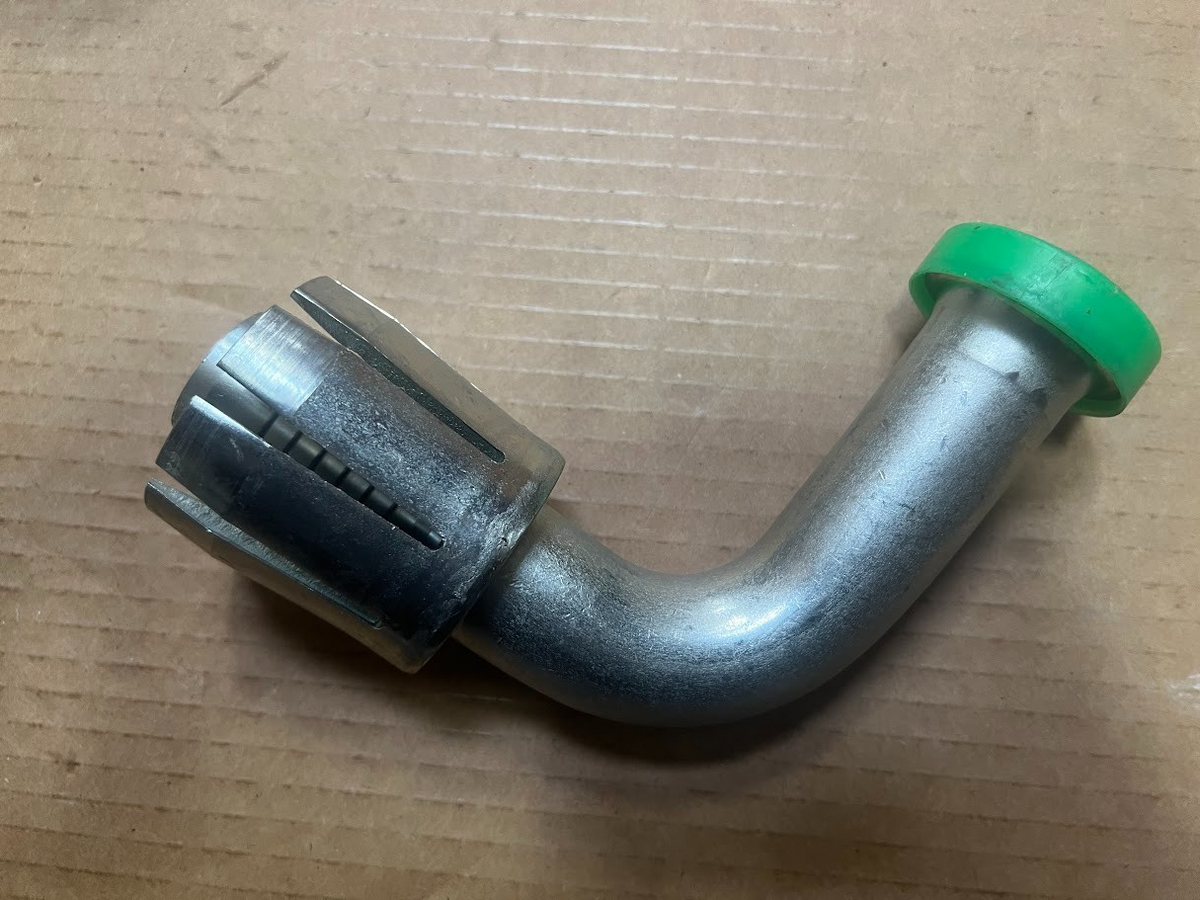

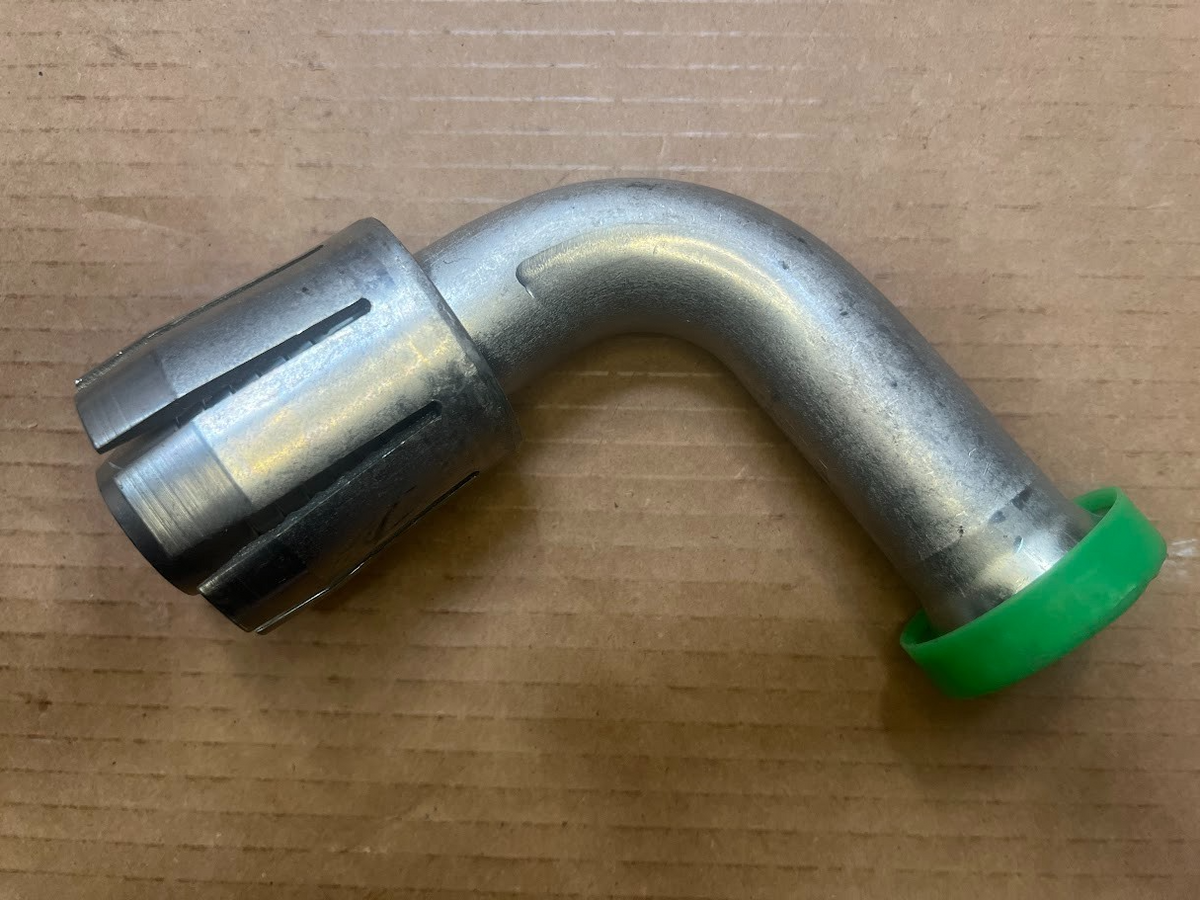

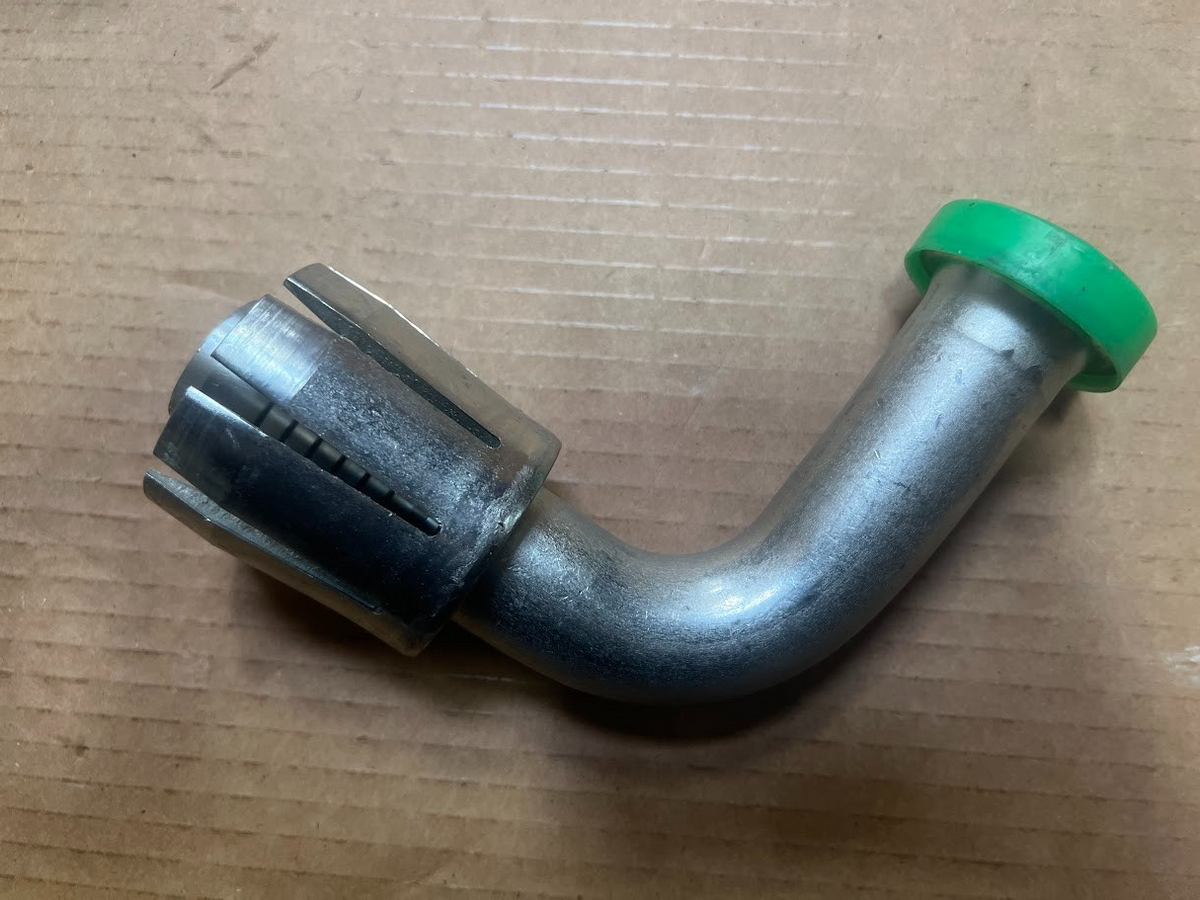

CATERPILLAR 5S3820 Flange To Hose Elbow (4730-01-284-6103)
Caterpillar 5S3820 flange to hose elbow, 90 degree flow angle, for hydraulic fluid service, for the T-11 CR Tractor.
Part Information
- Manufacturer: Caterpillar Inc
- Part Number: 5S3820
- NSN: 4730-01-284-6103
- End Item: T-11 CR Tractor
- CAGE Code: Caterpillar Inc
Specifications

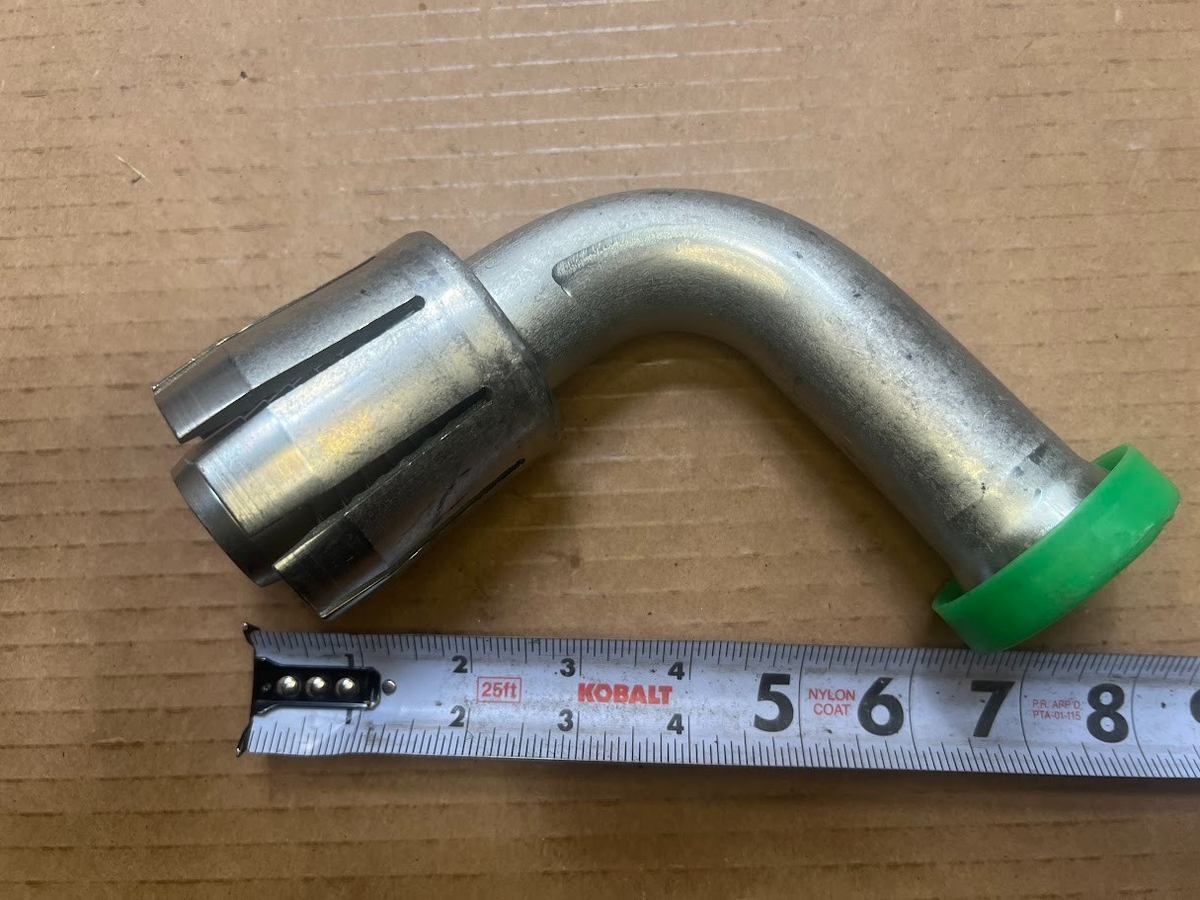

- Leg Length, First End: 117.5 mm nominal
- Leg Length, Second End: 132.0 mm nominal
- Connection Type, First End: Unthreaded Internal Tube
- Connection Type, Second End: Threaded External Hose
- Flow Angle: 90.0 degrees
- Media Designed For: Hydraulic Fluid
Included Components
- 2P7681 Head-Stem (1)
- 9S6533 Collet (1)
