Ticonderoga CG 47 Control Flow PLD300953PC39 Hydraulic Accumulator 3040000049182

Name: Ticonderoga CG 47 Control Flow PLD300953PC39 Hydraulic Accumulator 3040000049182
SKU: 5026288608923
Price: 4306.76 USD
Availability: InStock

$4,306.76 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

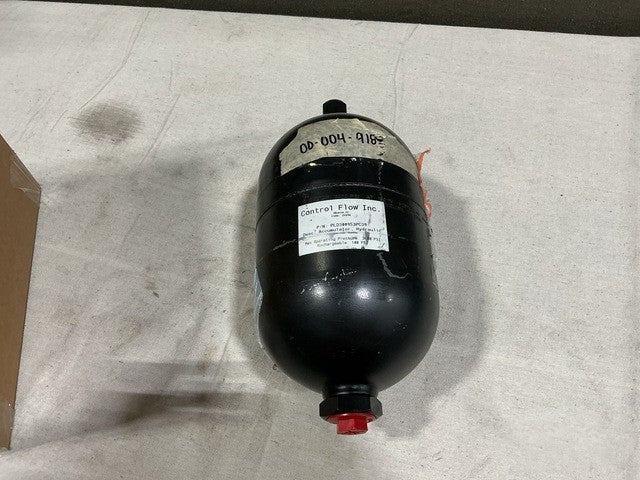

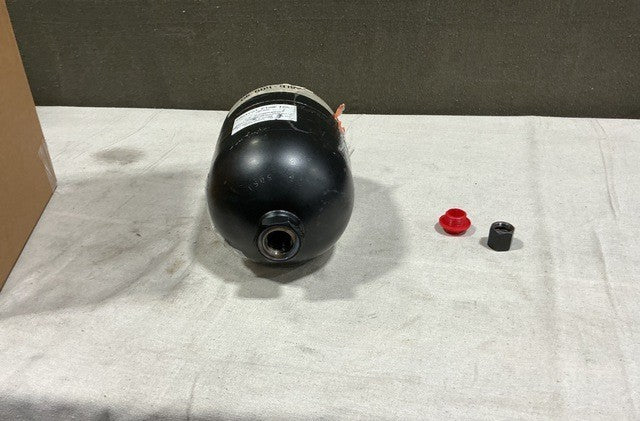

CONTROL FLOW, INC. PLD300953PC39 Hydraulic Accumulator (NSN 3040-00-004-9182)

Bladder-type hydraulic accumulator with synthetic rubber separator, for the Ticonderoga CG 47.

Part Information

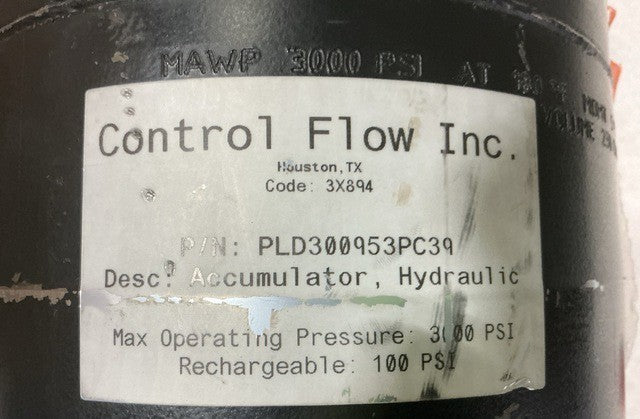

Manufacturer: Control Flow, Inc.
Part Number: PLD300953PC39
NSN: 3040-00-004-9182
End Item: Ticonderoga CG 47

Specifications

Thread Class: 2B
Overall Height: 14.375 in. max
Overall Diameter: 6.812 in. max
Cubic Capacity: 232.000 cu in
Separator Type: Bladder

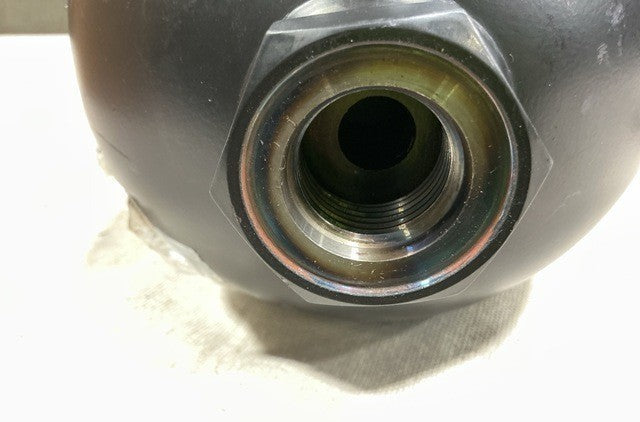

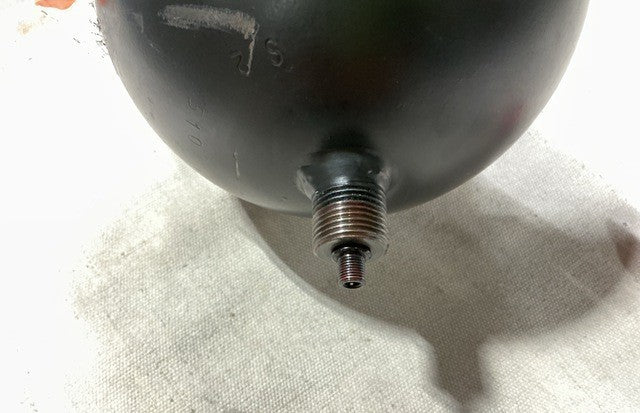

Port Screw Thread Diameter: 1.062 in. nominal
Port Screw Thread Quantity per Inch: 12
Port Screw Thread Series Designator: UN
Operating Pressure: 2000 PSI nominal
Material: Rubber, Synthetic
Shape: Cylindrical

View full details
