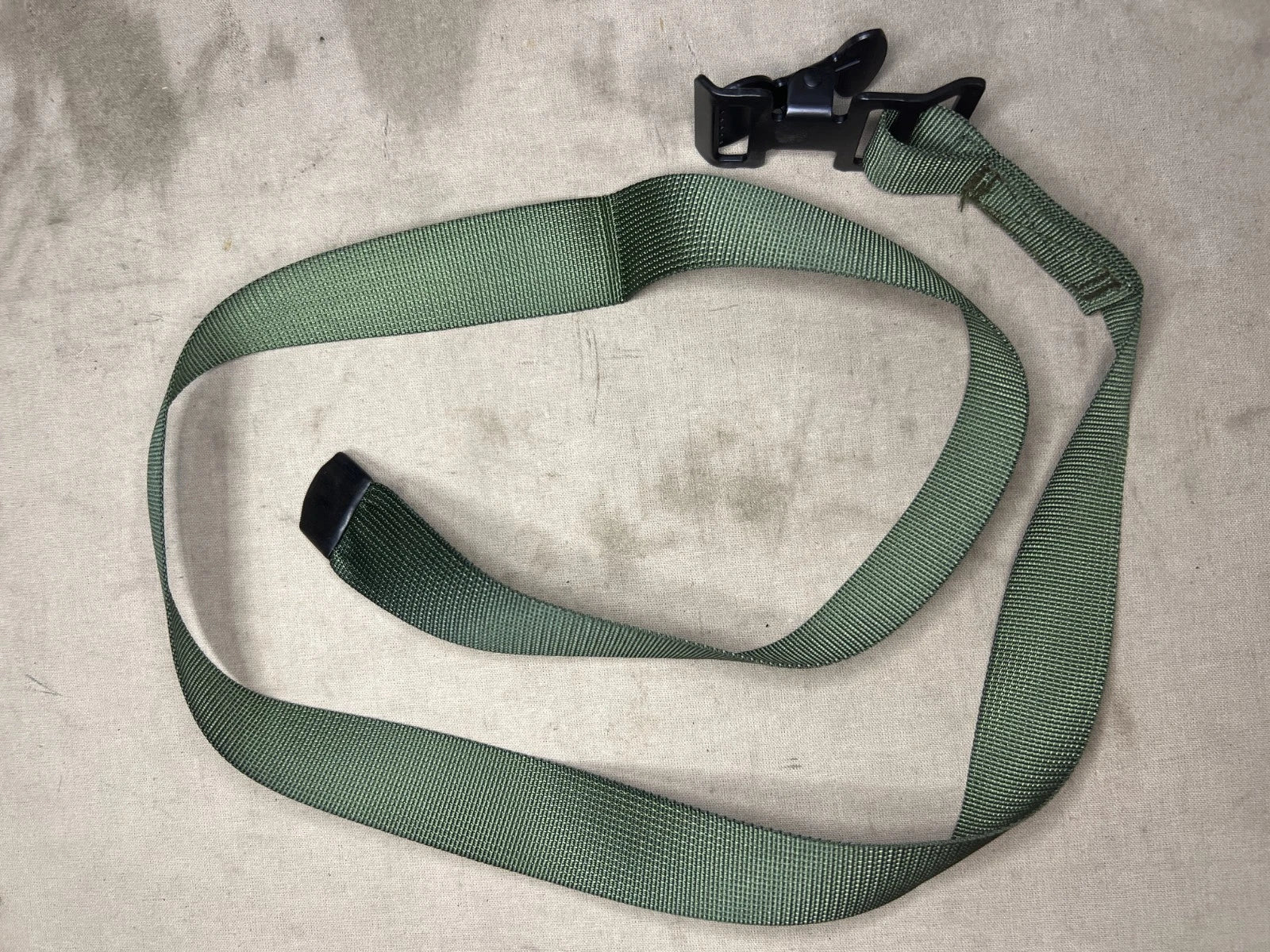

Us Military Vehicle Cargo Truck Tie Down 36 Inch Webbing Strap | NSN 5340-00-753-3744
Us Military Vehicle Cargo Truck Tie Down 36 Inch Webbing Strap | NSN 5340-00-753-3744
Couldn't load pickup availability
|
WIDTH |
1.000 INCHES NOMINAL |
|

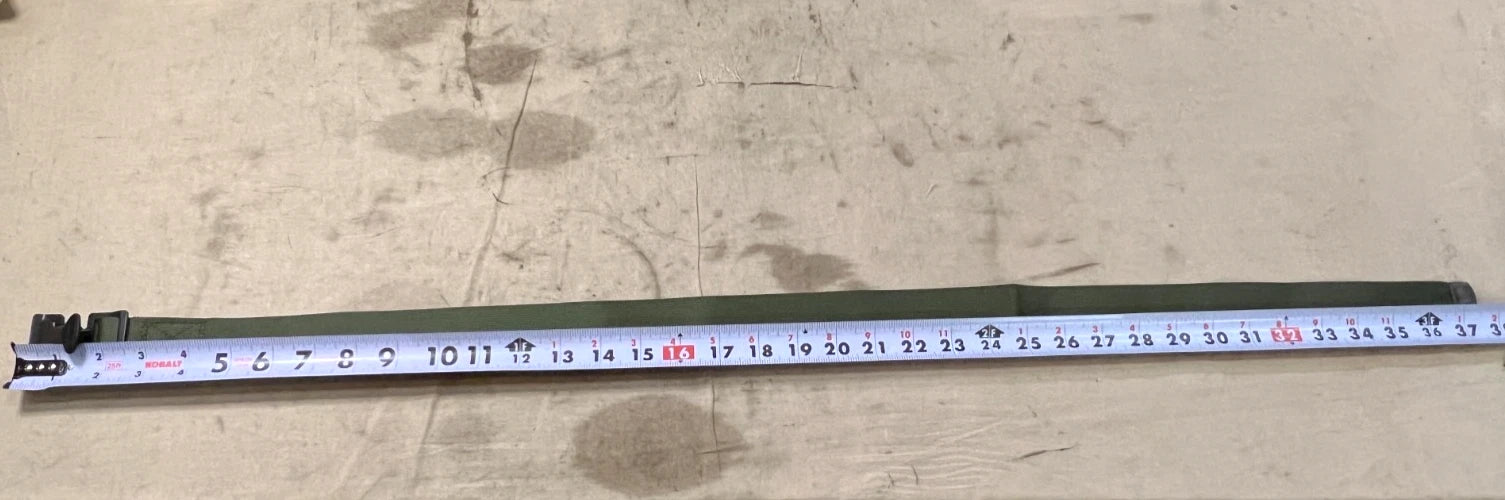

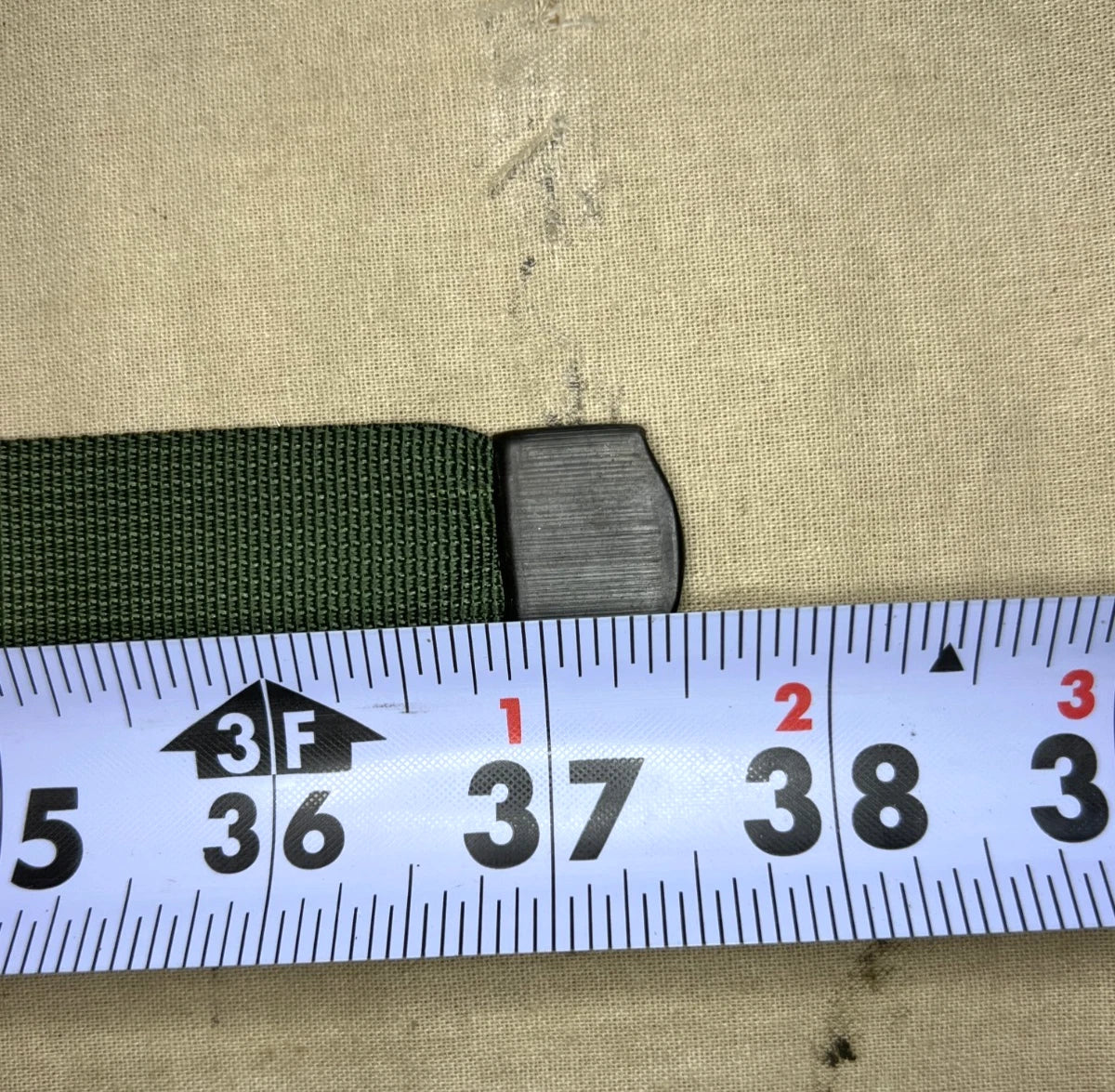

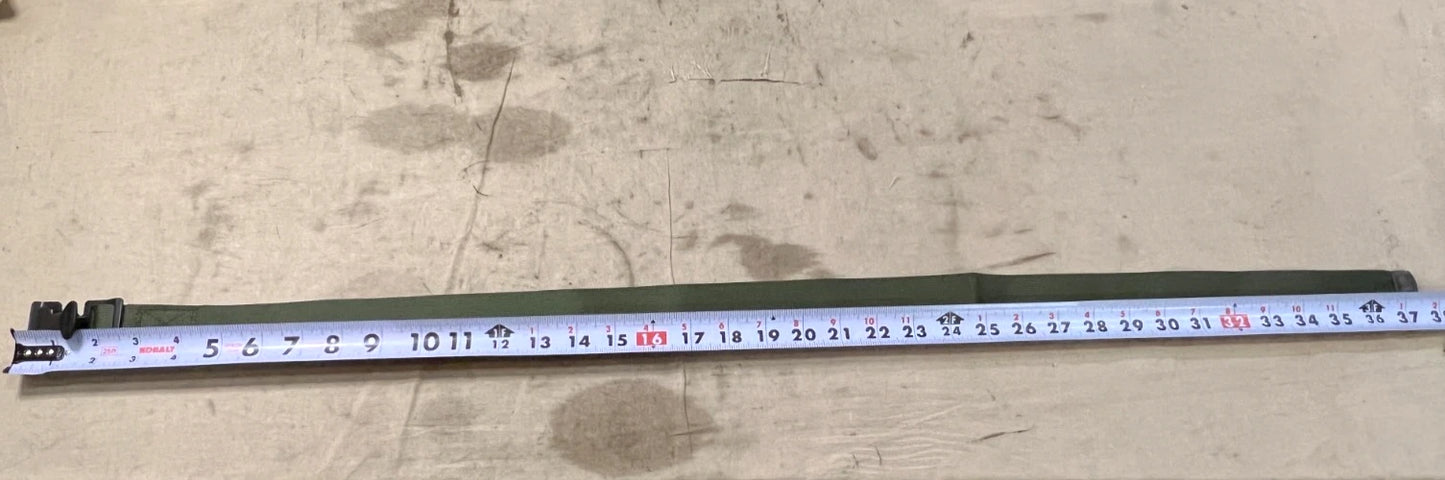

LENGTH |
36.000 INCHES NOMINAL |
|
ENVIRONMENTAL PROTECTION |
WATER RESISTANT AND MILDEW RESISTANT |
|
END ITEM IDENTIFICATION |
2320-01-097-0248,2320-01-097-0249,2320-01-100-7672,2320-01-097-0260,2320-01-195-7641 HEMTT (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS); MULTIPLE LAUNCH ROCKET SYSTEM (MLRS); ARMORED MULTI-PURPOSE VEHICLE (AMPV) |
|
END TYPE |
BOTH W/ATTACHMENTS |
|

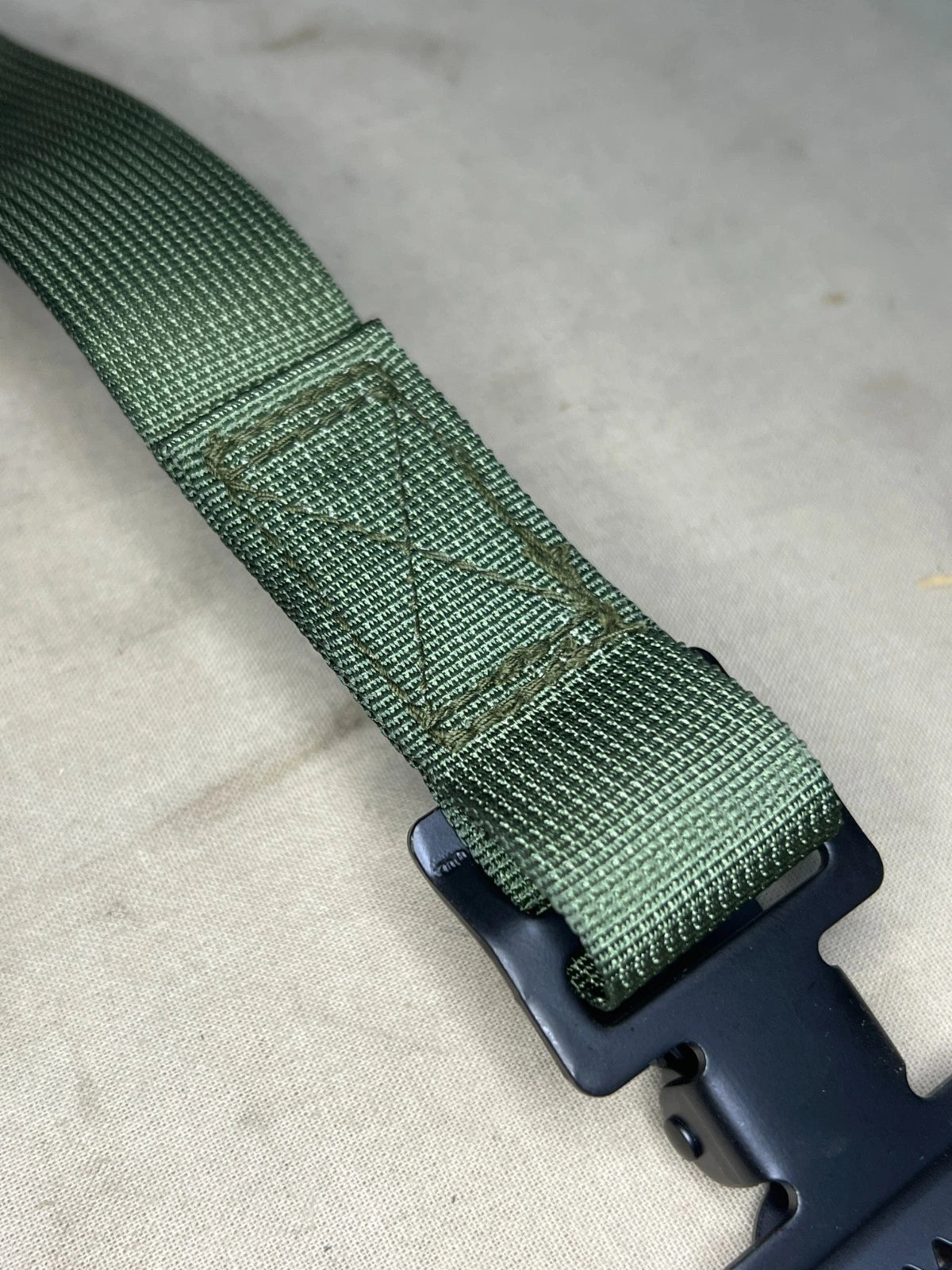

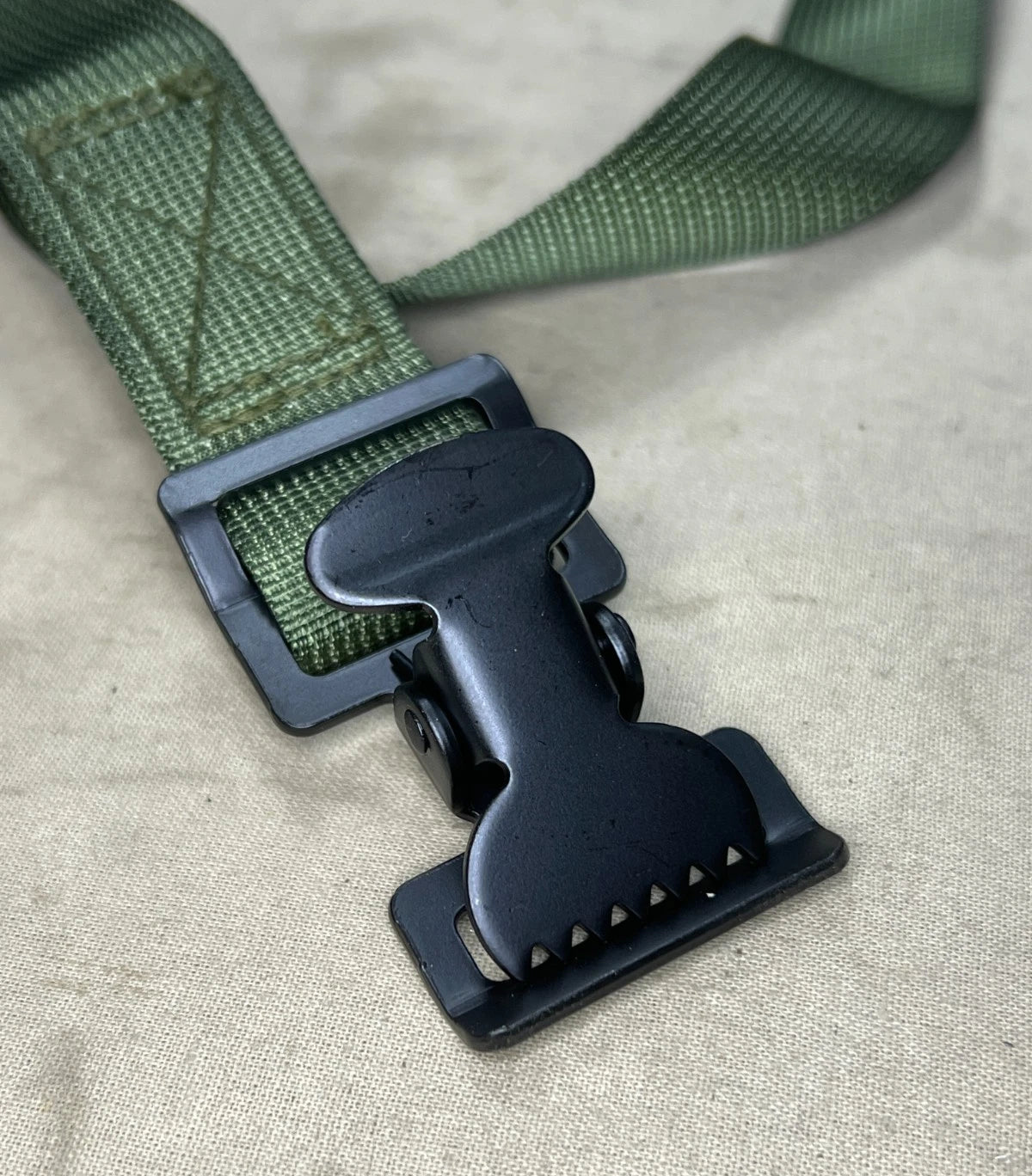

FASTENER TYPE |
BUCKLE AND END CLIP |
|
BUCKLE LOCATION |
ON END |
|
FASTENED BUCKLE FEATURE |
INCLUDED |
|
BUCKLE FASTENING METHOD |
SEWED |
|
END CLIP QUANTITY |
1 |
|
COLOR |
OLIVE DRAB |
|
MATERIAL |
COPPER ALLOY 260 OR COPPER ALLOY 268 END CLIP |
|
MATERIAL |
PLASTIC POLYHEXAMETHYLENE ADIPAMIDE LOCATION NOT OTHERWISE SPECIFIED |
|
MATERIAL |
STEEL BUCKLE |
|
MATERIAL DOCUMENT AND CLASSIFICATION |
MIL-W-27265, CLASS R MIL SPEC SINGLE MATERIAL RESPONSE LOCATION NOT OTHERWISE SPECIFIED |
|
MATERIAL DOCUMENT AND CLASSIFICATION |
QQ-B-613, ALLOY 260, 1/4H FED SPEC SINGLE MATERIAL RESPONSE OR QQ-B-613, COMP 268 FED SPEC SINGLE MATERIAL RESPONSE END CLIP |
|
MATERIAL DOCUMENT AND CLASSIFICATION |
QQ-S-698, COMP 1008 THRU 1020 FED SPEC SINGLE MATERIAL RESPONSE BUCKLE |
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- 5-ton M939 series: M923, M925, M927, M928, M929, M930, M931, M932, M934, M936 and A1/A2 variants (TM 9-2320-272-24P)
- HEMTT: M977, M978, M983, M984, M985 (TM 9-2320-279-24P)
- M35A2 / M44A2 2-1/2 ton series: M35A2, M35A2C, M36A2, M49A2C, M50A3, M109A3, M185A3 (TM 9-2320-361-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
