USGI Military 12286353 Lock Washer Step Joint Seal Ring | NSN 5330-01-073-0092
USGI Military 12286353 Lock Washer Step Joint Seal Ring | NSN 5330-01-073-0092
Regular price
$700.00 USD
Regular price
Sale price
$700.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5330-01-073-0092 Specs and cross-references for NSN 5330-01-073-0092 (opens in a new tab) ↗

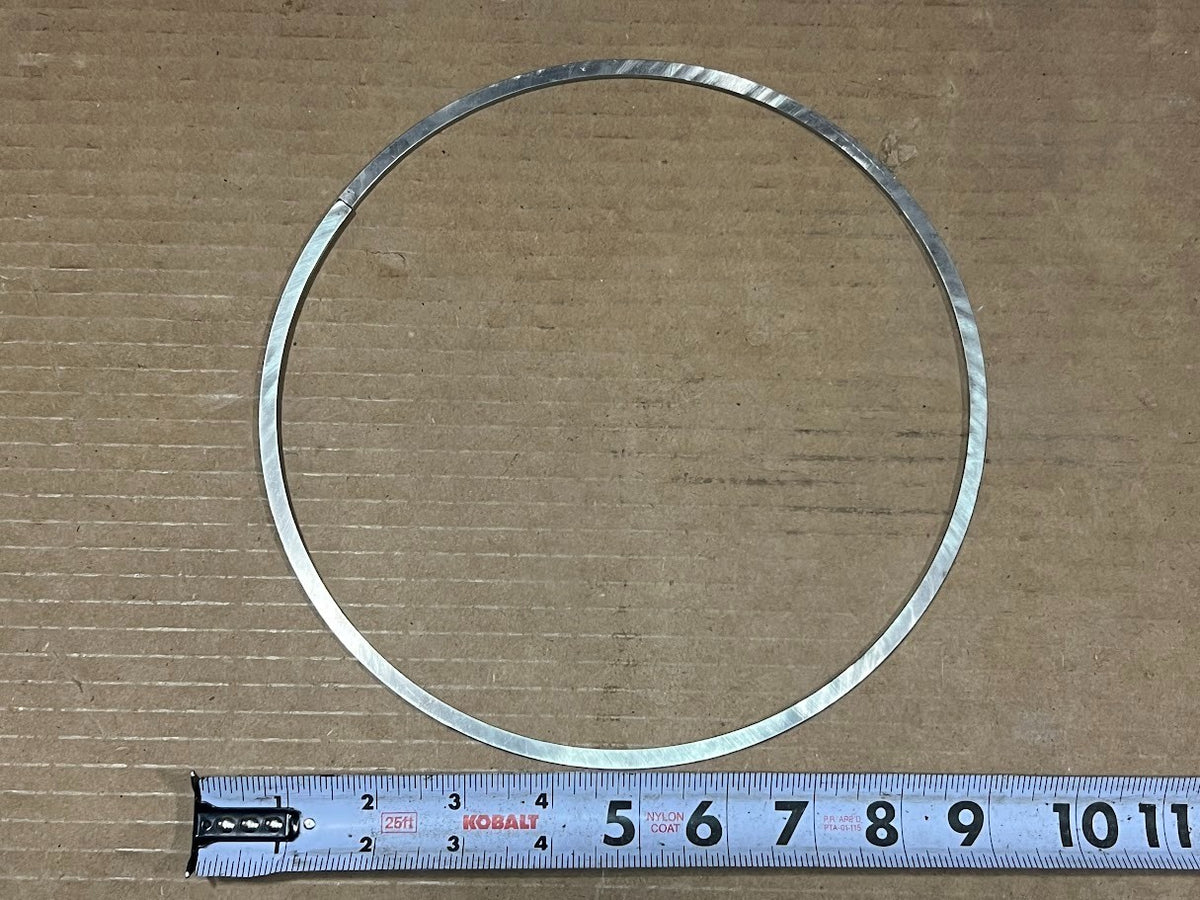

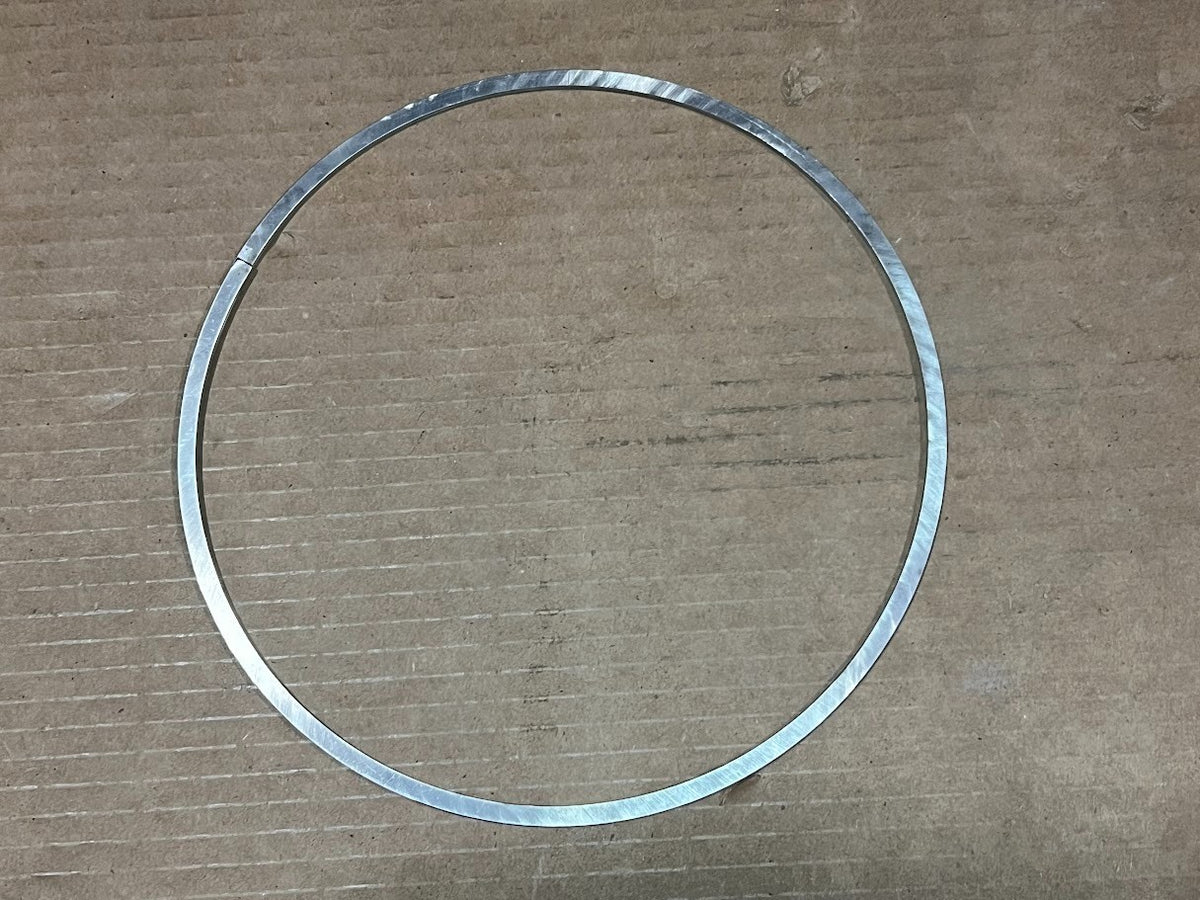

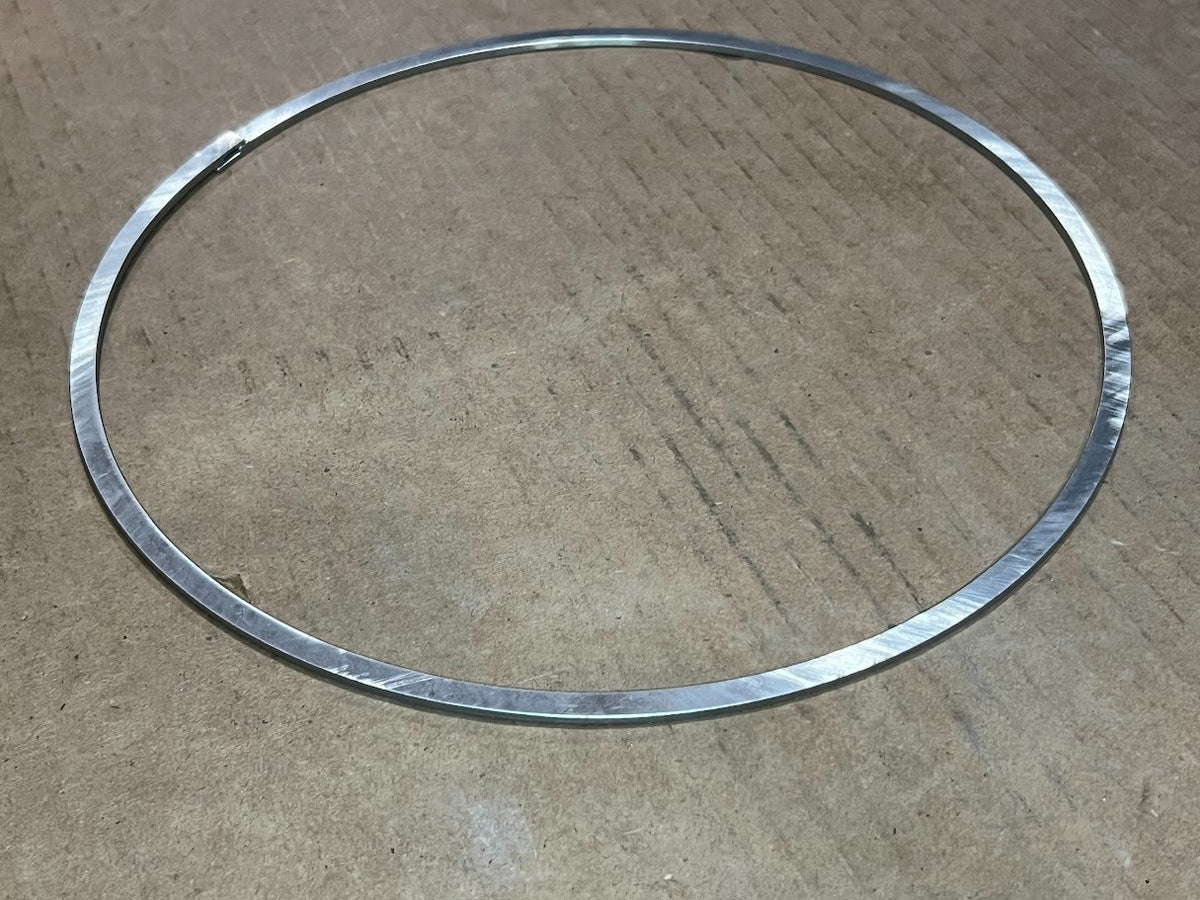

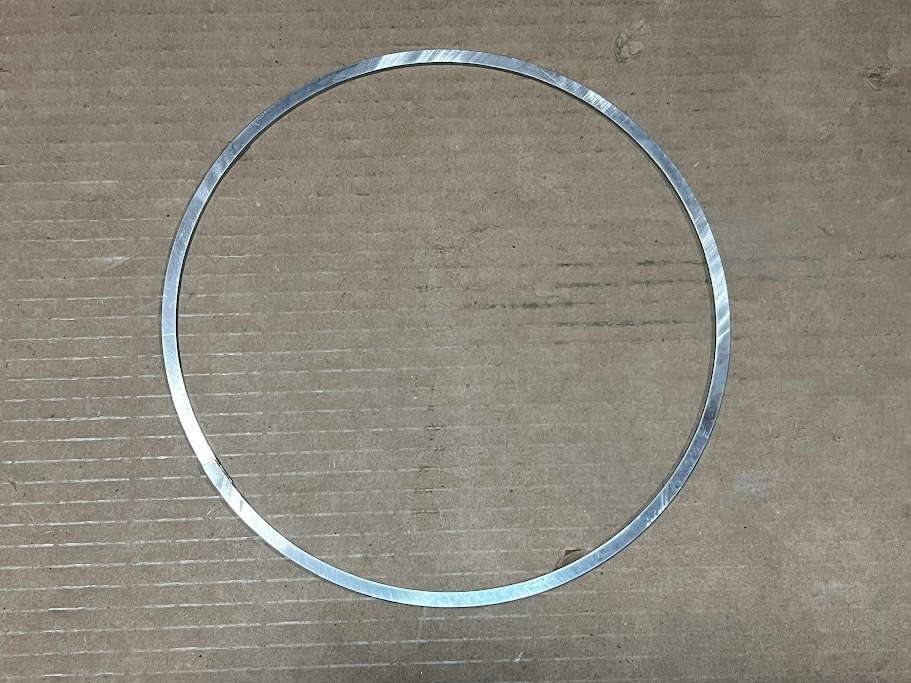

12286353 Metal Seal Ring (NSN 5330-01-073-0092)
Steel seal ring, step joint, contracting concentric style, for the Tank, M1 Abrams Family of Vehicles (FOV).
Part Information
- Design Control Activity: U S Army Tank Automotive Command
- Part Number: 12286353
- NSN: 5330-01-073-0092
- End Item: Tank, M1 Abrams Family of Vehicles (FOV)
Specifications
- Inside Diameter: 8.562 in (nominal)
- Radial Wall Thickness: 0.2050-0.2250 in
- Overall Width: 0.0900 in (nominal)
- Metallic Hardness Rating: Rockwell Superficial 15-T 65.0 (nominal)
- Material: Steel
- Cross-Sectional Shape: Plain rectangular, two piece, straight face
- Ring Style: Contracting concentric
- Joint Style: Step joint
